SKU: 52407-EU

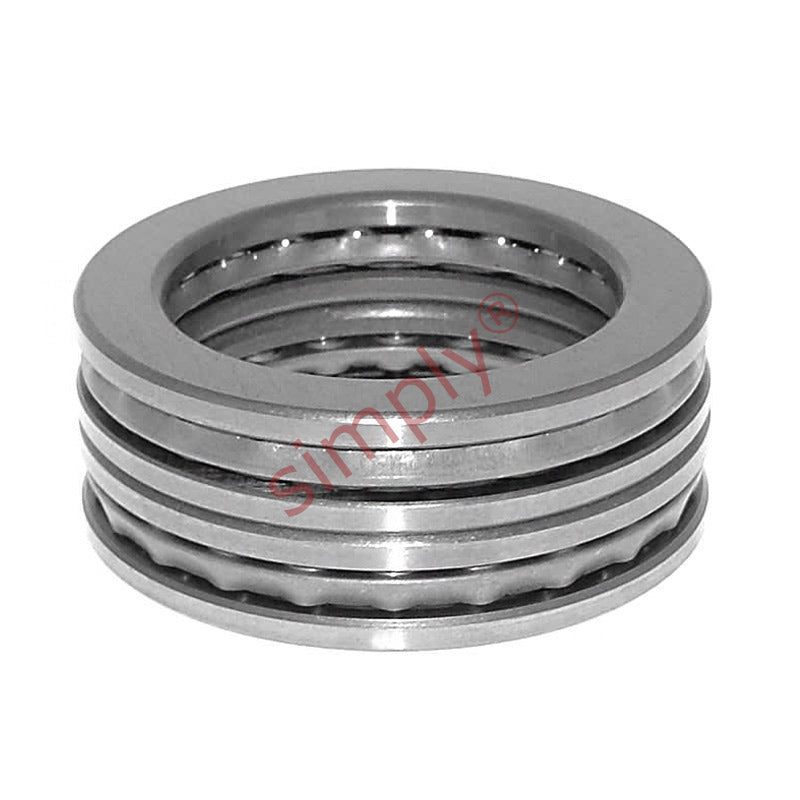

52407 Budget Double Thrust Ball Bearing with Flat Seats 25x80x59mm
52407 Budget Double Thrust Ball Bearing with Flat Seats 25x80x59mm
Regular price
$323.35
ex VAT
Regular price
Sale price
$323.35
ex VAT
In stock
Price Break
10+
$287.78
19+
$271.61
29+
$268.38
39+
$265.15
49+
$261.91
74+
$258.68
99+
$242.51
199+
$239.28
249+
$236.05
499+
$232.81
999+
$226.35
Description
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 80mm
- Width:
- 59mm
Technical
Technical
| d | 25mm |
|---|---|
| D | 80mm |
| H | 59mm |
| Dynamic load C | 87.1 kN |
| Static load Co | 170 kN |
| Fatigue load Pu | 6.2 kN |
| Minimum load factor A | 0.15 |
| Reference speed | 3000 rpm |
| Limiting speed | 4300 rpm |
| Weight | 1.45 kg |
| D1 | 37mm |
| B | 14mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| da | 35mm |
| Da max | 53mm |
| ra max | 1mm |
| rb max | 0.6mm |
