SKU: 52411-SKF

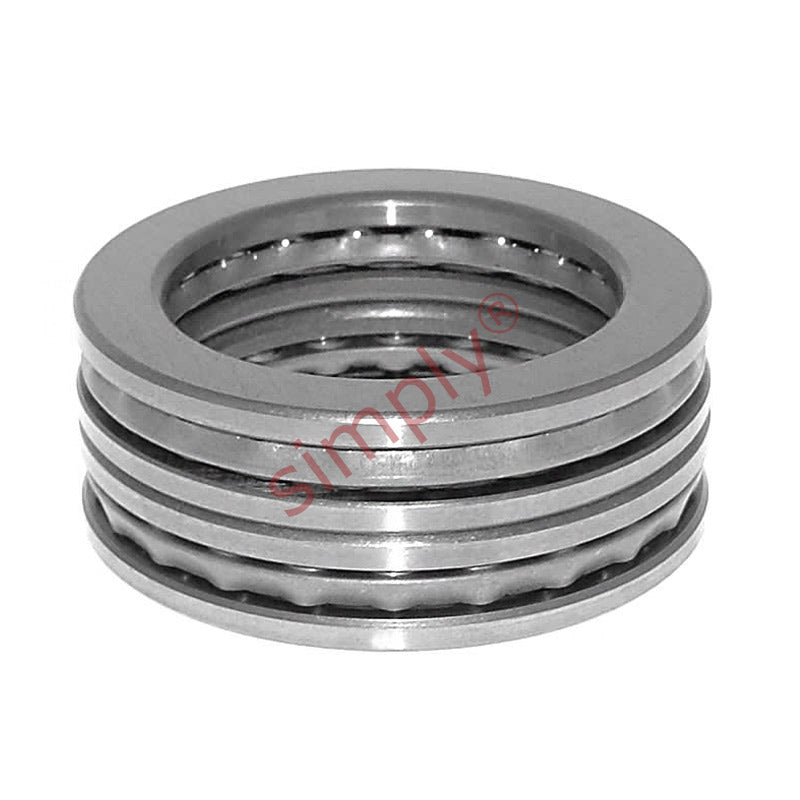

SKF 52411 Double Thrust Ball Bearing with Flat Seats 45x120x87mm
SKF 52411 Double Thrust Ball Bearing with Flat Seats 45x120x87mm
Regular price
$897.59
ex VAT
Regular price
Sale price
$897.59
ex VAT
In stock
Price Break
10+
$798.86
19+
$753.98
29+
$745.00
39+
$736.02
49+
$727.05
74+
$718.07
99+
$673.19
199+
$664.22
249+
$655.24
499+
$646.26
999+
$628.31
Couldn't load pickup availability
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 120mm
- Width:
- 87mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 120mm |
| H | 87mm |
| Dynamic load C | 178 kN |
| Static load Co | 390 kN |
| Fatigue load limit Pu | 14.3 kN |
| Minimum load factor A | 0.79 |
| Reference speed | 1800 rpm |
| Limiting speed | 2400 rpm |
| Weight | 4.7 kg |
| D1 | 57mm |
| B | 20mm |
| r1r2 | 1.5mm |
| r3r4 | 0.6mm |
| da | 55mm |
| Da max | 81mm |
| ra max | 1.5mm |
| rb max | 0.6mm |
