SKU: 53206+U206-EU

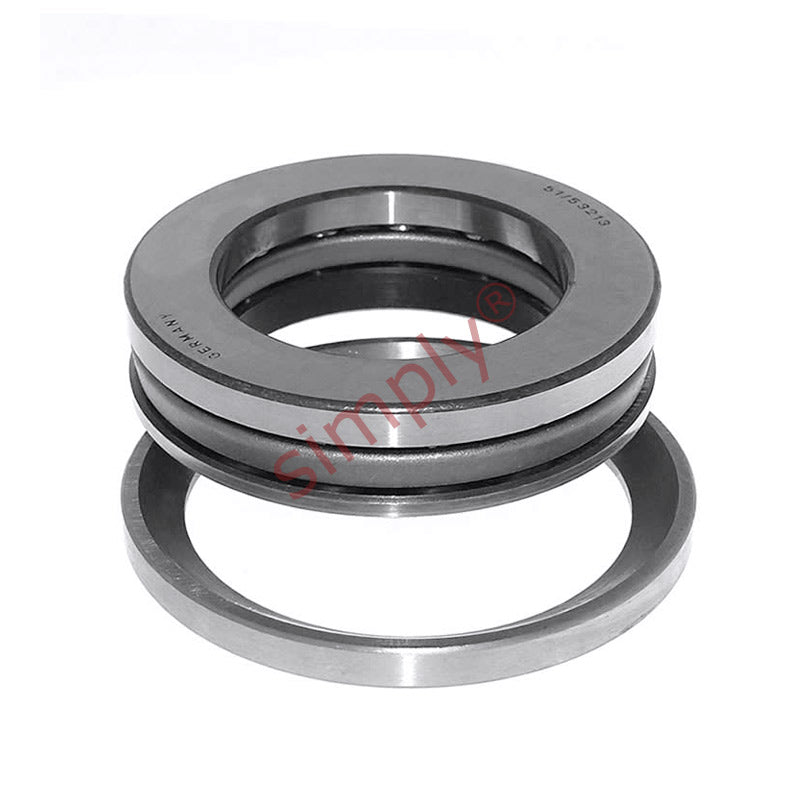

53206 Budget Single Thrust Ball Bearing with Spherical Housing Seat U206 30x52x20mm
53206 Budget Single Thrust Ball Bearing with Spherical Housing Seat U206 30x52x20mm
Regular price
$32.60
ex VAT
Regular price
Sale price
$32.60
ex VAT
Low stock
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 20mm
Technical
Technical

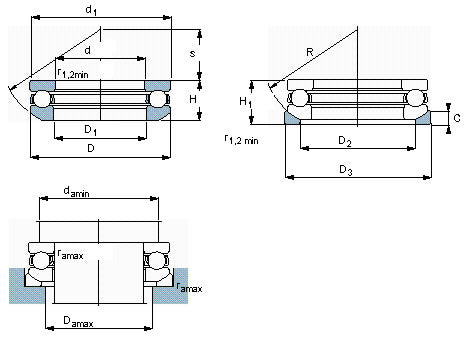

| d | 30mm |
|---|---|
| D | 52mm |
| H1 | 20mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 51 kN |
| Fatigue load limit Pu | 1.9 kN |
| Minimum load factor A | 0.013 |
| Reference speed | 4800 rpm |
| Limiting Speed | 6700 rpm |
| Weight | 0.18 kg |
| Seating Washer | U206 |
| d1 | 52mm |
| D1 | 32mm |
| D2 | 42mm |
| D3 | 55mm |
| H | 17.8mm |
| C | 5.5mm |
| R | 45mm |
| s | 22mm |
| r1r2 min | 0.6mm |
| da max | 43mm |
| Da max | 42mm |
| ra max | 0.6mm |
