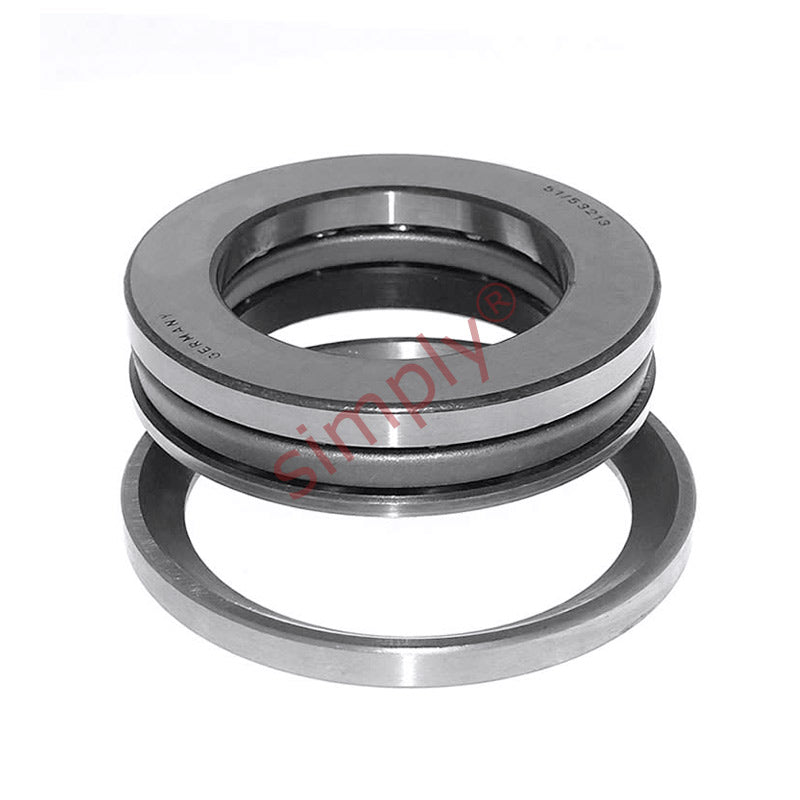

SKF 53213 Single Thrust Ball Bearing with Spherical Housing Seat U213 65x100x32mm
SKF 53213 Single Thrust Ball Bearing with Spherical Housing Seat U213 65x100x32mm
Regular price
$247.57
ex VAT
Regular price
Sale price
$247.57
ex VAT
In stock
Price Break
10+
$220.34
19+
$207.96
29+
$205.48
39+
$203.01
49+
$200.53
74+
$198.06
99+
$185.68
199+
$183.20
249+
$180.73
499+
$178.25
999+
$173.30
Description
Description
|
SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 32mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 100mm |
| H1 | 32mm |
| Dynamic load C | 63.7 kN |
| Static load Co | 163 kN |
| Fatigue load limit Pu | 6 kN |
| Minimum load factor A | 0.14 |
| Reference speed | 2600 rpm |
| Limiting speed | 3600 rpm |
| Weight | 0.91 kg |
| Seating washer | U213 |
| d1 | 100mm |
| D1 | 67mm |
| D2 | 82mm |
| D3 | 105mm |
| H | 28.7mm |
| C | 9mm |
| R | 80mm |
| s | 40mm |
| r1r2 min | 1mm |
| da max | 86mm |
| Da max | 82mm |
| ra max | 1mm |
