SKU: 53217?EU

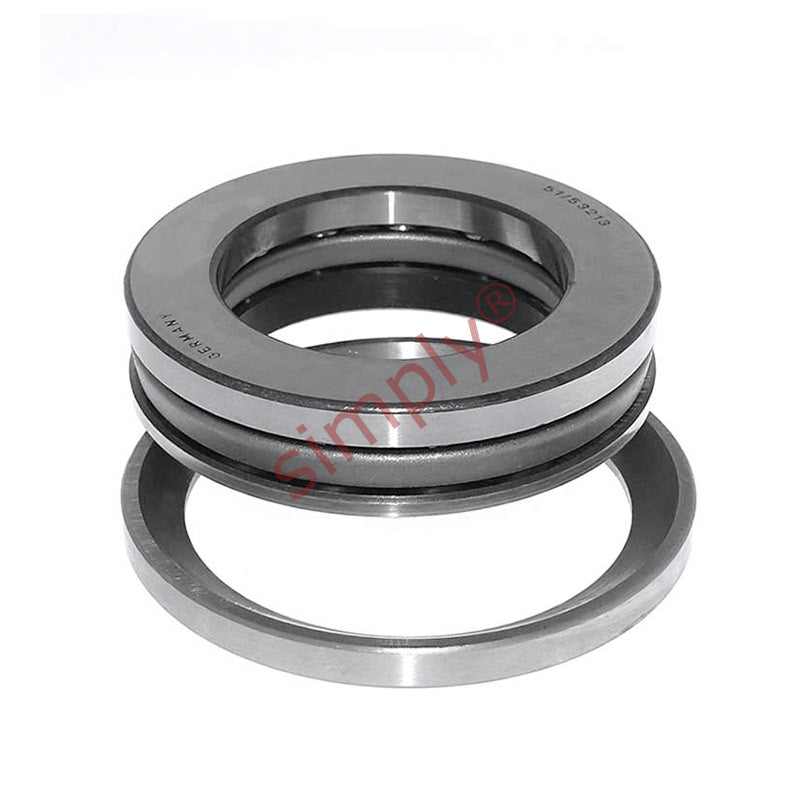

53217 Budget Single Thrust Ball Bearing with Spherical Housing Seat U217 85x125x37mm
53217 Budget Single Thrust Ball Bearing with Spherical Housing Seat U217 85x125x37mm
Regular price
$147.30
ex VAT
Regular price
Sale price
$147.30
ex VAT
In stock
Price Break
10+
$131.10
19+
$123.73
29+
$122.26
39+
$120.79
49+
$119.31
74+
$117.84
99+
$110.48
199+
$109.00
249+
$107.53
499+
$106.06
999+
$103.11
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 125mm
- Width:
- 37mm
Technical
Technical
| d | 85mm |
|---|---|
| D | 125mm |
| H1 | 37mm |
| Dynamic load C | 97.5 kN |
| Static load Co | 275 kN |
| Fatigue load limit Pu | 9.8 kN |
| Minimum load factor A | 0.39 |
| Reference speed | 2200 rpm |
| Limiting Speed | 3000 rpm |
| Weight | 1.5 kg |
| Seating Washer | U217 |
| d1 | 125mm |
| D1 | 88mm |
| D2 | 105mm |
| D3 | 130mm |
| H | 33.1mm |
| C | 11mm |
| R | 100mm |
| s | 52mm |
| r1r2 min | 1mm |
| da max | 109mm |
| Da max | 105mm |
| ra max | 1mm |
