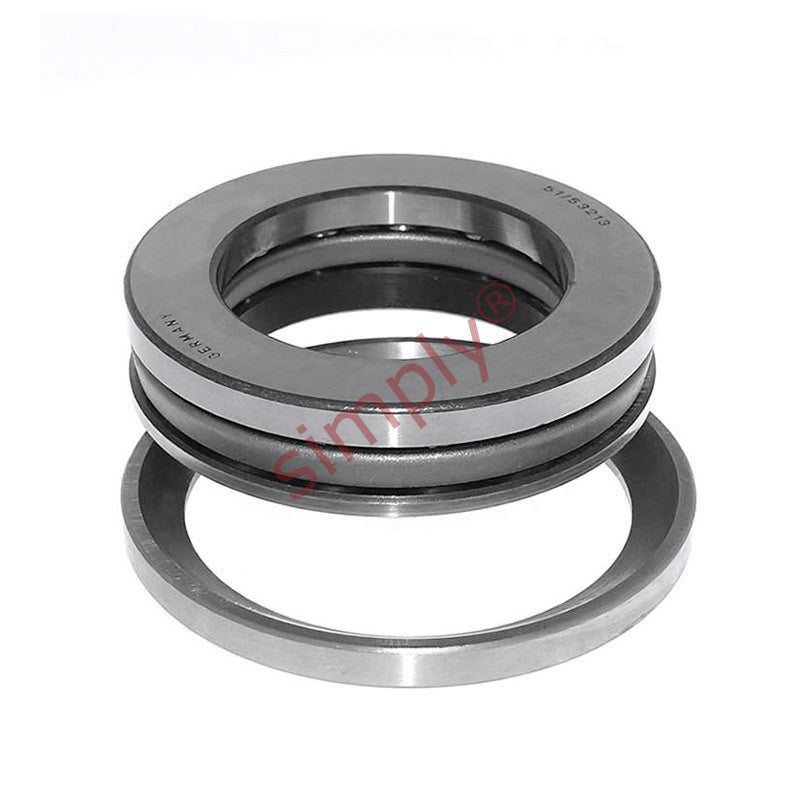

53220 Budget Single Thrust Ball Bearing with Spherical Housing Seat U220 100x150x45mm
53220 Budget Single Thrust Ball Bearing with Spherical Housing Seat U220 100x150x45mm
Regular price
$221.73
ex VAT
Regular price
Sale price
$221.73
ex VAT
In stock
Price Break
10+
$197.34
19+
$186.25
29+
$184.04
39+
$181.82
49+
$179.60
74+
$177.38
99+
$166.30
199+
$164.08
249+
$161.86
499+
$159.65
999+
$155.21
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 45mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 150mm |
| H1 | 45mm |
| Dynamic load C | 124 kN |
| Static load Co | 345 kN |
| Fatigue load limit Pu | 11.4 kN |
| Minimum load factor A | 0.62 |
| Reference speed | 1800 rpm |
| Limiting Speed | 2400 rpm |
| Weight | 2.7 kg |
| Seating Washer | U220 |
| d1 | 150mm |
| D1 | 103mm |
| D2 | 125mm |
| D3 | 155mm |
| H | 40.9mm |
| C | 14mm |
| R | 112mm |
| s | 52mm |
| r1r2 min | 1.1mm |
| da max | 130mm |
| Da max | 125mm |
| ra max | 1mm |
