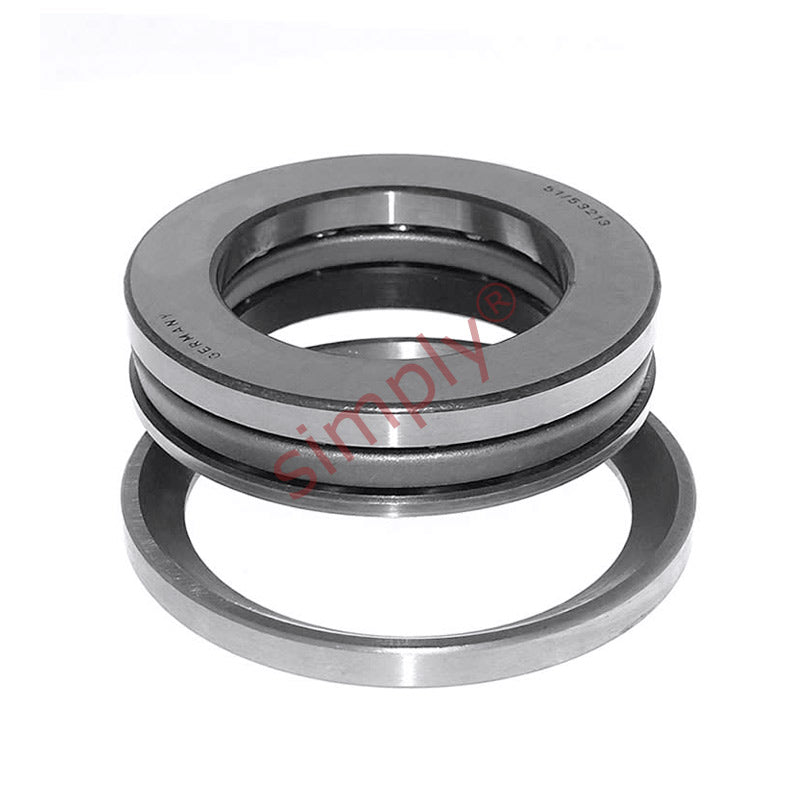

53228 Budget Single Thrust Ball Bearing with Spherical Housing Seat U228 140x200x55mm
53228 Budget Single Thrust Ball Bearing with Spherical Housing Seat U228 140x200x55mm
Regular price
$769.70
ex VAT
Regular price
Sale price
$769.70
ex VAT
In stock
Price Break
10+
$685.03
19+
$646.55
29+
$638.85
39+
$631.15
49+
$623.46
74+
$615.76
99+
$577.28
199+
$569.58
249+
$561.88
499+
$554.18
999+
$538.79
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 200mm
- Width:
- 55mm
Technical
Technical
| d | 140mm |
|---|---|
| D | 200mm |
| H1 | 55mm |
| Dynamic load C | 190 kN |
| Static load Co | 620 kN |
| Fatigue load limit Pu | 17.6 kN |
| Minimum load factor A | 2 |
| Reference speed | 1400 rpm |
| Limiting Speed | 1900 rpm |
| Weight | 5.45 kg |
| Seating Washer | U228 |
| d1 | 197mm |
| D1 | 143mm |
| D2 | 170mm |
| D3 | 210mm |
| H | 48.6mm |
| C | 17mm |
| R | 160mm |
| s | 87mm |
| r1r2 min | 1.5mm |
| da max | 176mm |
| Da max | 170mm |
| ra max | 1.5mm |
