SKU: 53310?EU

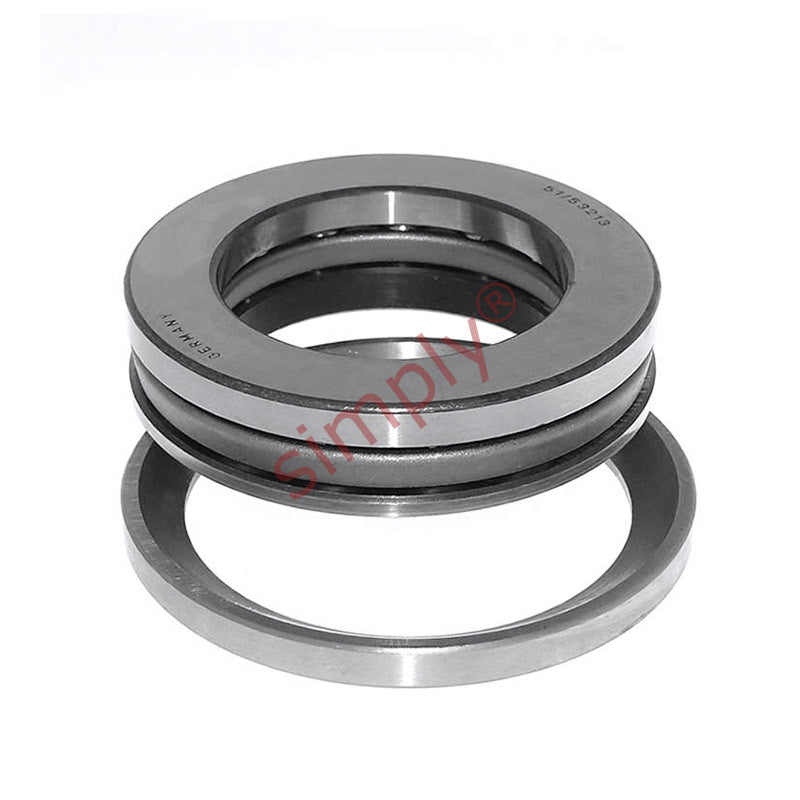

53310 Budget Single Thrust Ball Bearing with Spherical Housing Seat U310 50x95x37mm
53310 Budget Single Thrust Ball Bearing with Spherical Housing Seat U310 50x95x37mm
Regular price
$92.28
ex VAT
Regular price
Sale price
$92.28
ex VAT
In stock
Price Break
10+
$82.13
19+
$77.52
29+
$76.59
39+
$75.67
49+
$74.75
74+
$73.82
99+
$69.21
199+
$68.29
249+
$67.36
499+
$66.44
999+
$64.60
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 95mm
- Width:
- 37mm
Technical
Technical
| d | 50mm |
|---|---|
| D | 95mm |
| H1 | 37mm |
| Dynamic load C | 88.4 kN |
| Static load Co | 190 kN |
| Fatigue load limit Pu | 6.95 kN |
| Minimum load factor A | 0.19 |
| Reference speed | 2600 rpm |
| Limiting Speed | 3600 rpm |
| Weight | 1.2 kg |
| Seating Washer | U310 |
| d1 | 95mm |
| D1 | 52mm |
| D2 | 72mm |
| D3 | 100mm |
| H | 34.3mm |
| C | 11mm |
| R | 72mm |
| s | 28mm |
| r1r2 min | 1.1mm |
| da max | 77mm |
| Da max | 72mm |
| ra max | 1mm |
