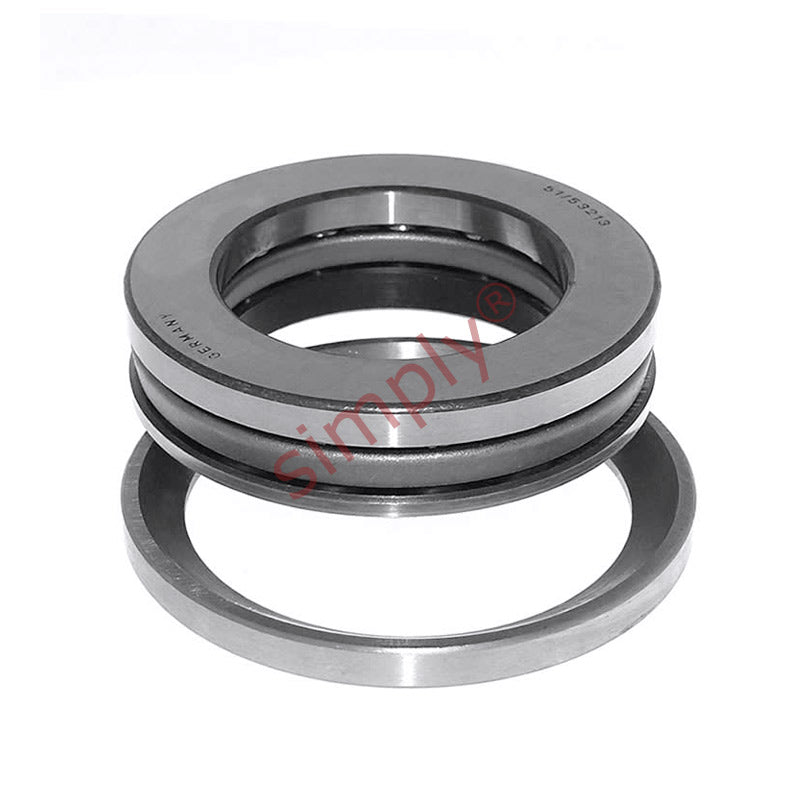

53315 Budget Single Thrust Ball Bearing with Spherical Housing Seat U315 75x135x52mm
53315 Budget Single Thrust Ball Bearing with Spherical Housing Seat U315 75x135x52mm
Regular price
$242.24
ex VAT
Regular price
Sale price
$242.24
ex VAT
In stock
Price Break
10+
$215.59
19+
$203.48
29+
$201.06
39+
$198.64
49+
$196.21
74+
$193.79
99+
$181.68
199+
$179.26
249+
$176.84
499+
$174.41
999+
$169.57
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 135mm
- Width:
- 52mm
Technical
Technical
| d | 75mm |
|---|---|
| D | 135mm |
| H1 | 52mm |
| Dynamic load C | 163 kN |
| Static load Co | 390 kN |
| Fatigue load limit Pu | 14 kN |
| Minimum load factor A | 0.79 |
| Reference speed | 1700 rpm |
| Limiting Speed | 2400 rpm |
| Weight | 3.2 kg |
| Seating Washer | U315 |
| d1 | 135mm |
| D1 | 77mm |
| D2 | 105mm |
| D3 | 140mm |
| H | 48.1mm |
| C | 15mm |
| R | 100mm |
| s | 37mm |
| r1r2 min | 1.5mm |
| da max | 111mm |
| Da max | 105mm |
| ra max | 1.5mm |
