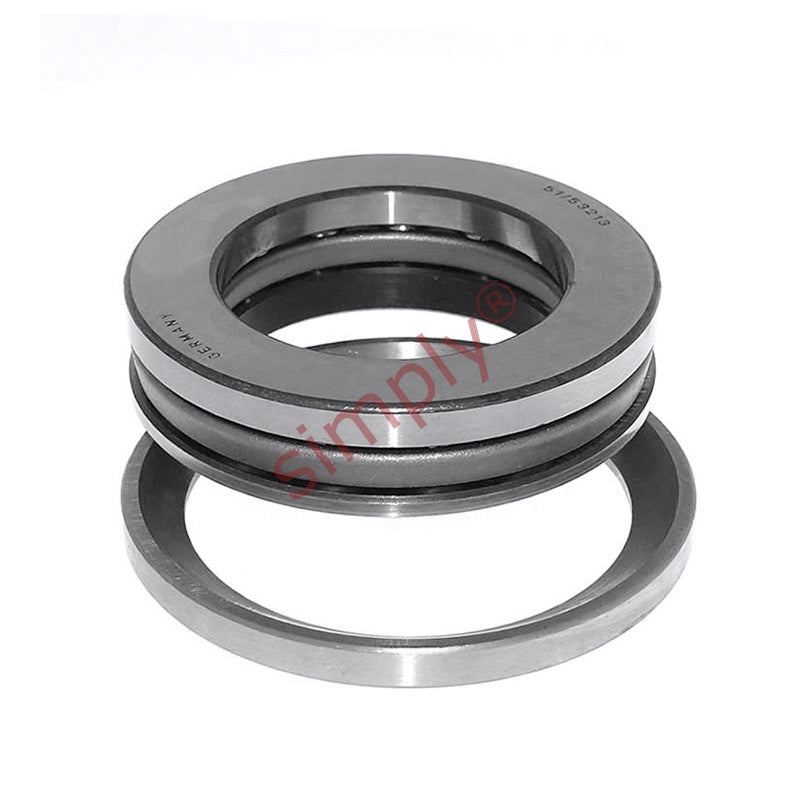

SKF 53420M Single Thrust Ball Bearing with Spherical Housing Seat U420 100x210x98mm
SKF 53420M Single Thrust Ball Bearing with Spherical Housing Seat U420 100x210x98mm
Regular price
$5,801.86
ex VAT
Regular price
Sale price
$5,801.86
ex VAT
In stock
Price Break
10+
$5,163.66
19+
$4,873.56
29+
$4,815.54
39+
$4,757.53
49+
$4,699.51
74+
$4,641.49
99+
$4,351.40
199+
$4,293.38
249+
$4,235.36
499+
$4,177.34
999+
$4,061.30
Description
Description
|
SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 210mm
- Width:
- 98mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 210mm |
| H1 | 98mm |
| Dynamic load C | 371 kN |
| Static load Co | 1060 kN |
| Fatigue load limit Pu | 31.5 kN |
| Minimum load factor A | 5.8 |
| Reference speed | 950 rpm |
| Limiting speed | 1400 rpm |
| Weight | 18 kg |
| Seating washer | U420 |
| d1 | 205mm |
| D1 | 103mm |
| D2 | 155mm |
| D3 | 220mm |
| H | 90mm |
| C | 27mm |
| R | 160mm |
| s | 50mm |
| r1r2 min | 3mm |
| da max | 165mm |
| Da max | 155mm |
| ra max | 2.5mm |
