SKU: 54307-SKF

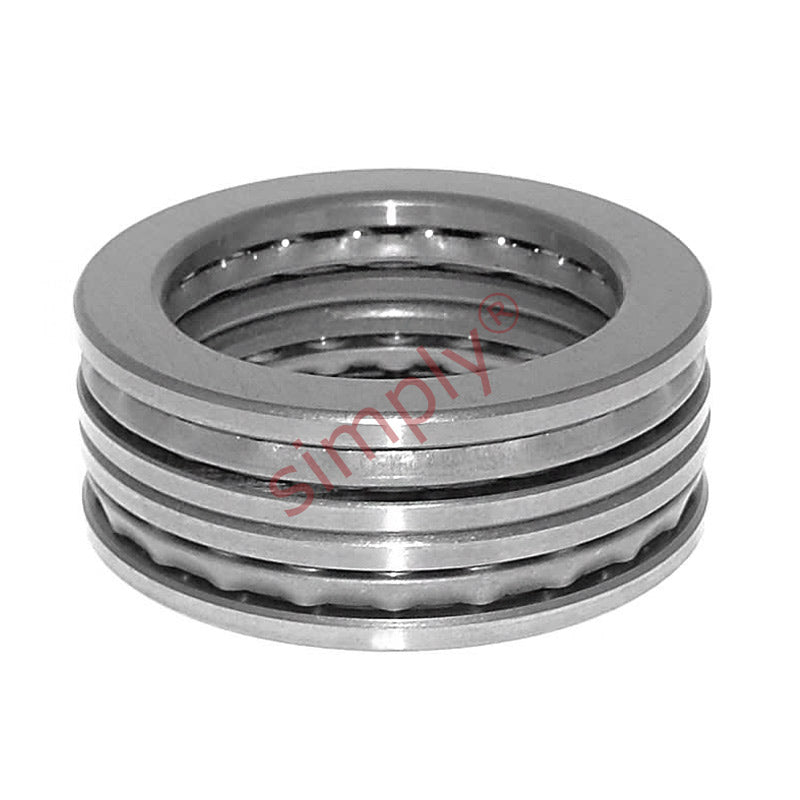

SKF 54307 Double Thrust Ball Bearing with Spherical Housing Washers 30x68x52mm
SKF 54307 Double Thrust Ball Bearing with Spherical Housing Washers 30x68x52mm
Regular price
$233.80
ex VAT
Regular price
Sale price
$233.80
ex VAT
In stock
Price Break
10+
$208.08
19+
$196.39
29+
$194.05
39+
$191.72
49+
$189.38
74+
$187.04
99+
$175.35
199+
$173.01
249+
$170.67
499+
$168.34
999+
$163.66
Description
Description
|
SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 68mm
- Width:
- 52mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 68mm |
| H1 | 52mm |
| Dynamic load C | 49.4 kN |
| Static load Co | 96.5 kN |
| Fatigue load limit Pu | 3.55 kN |
| Minimum load factor A | 0.048 |
| Reference speed | 3200 rpm |
| Limiting speed | 4500 rpm |
| Weight | 0.85 kg |
| Seating washer | U307 |
| D1 | 37mm |
| D2 | 52mm |
| D3 | 72mm |
| H | 47.19mm |
| B | 10mm |
| C | 7.5mm |
| R | 56mm |
| s | 21mm |
| r1r2 | 1mm |
| r3r4 | 0.3mm |
| da | 35mm |
| Da max | 52mm |
| ra max | 1mm |
| rb max | 0.3mm |
