SKU: 570-304

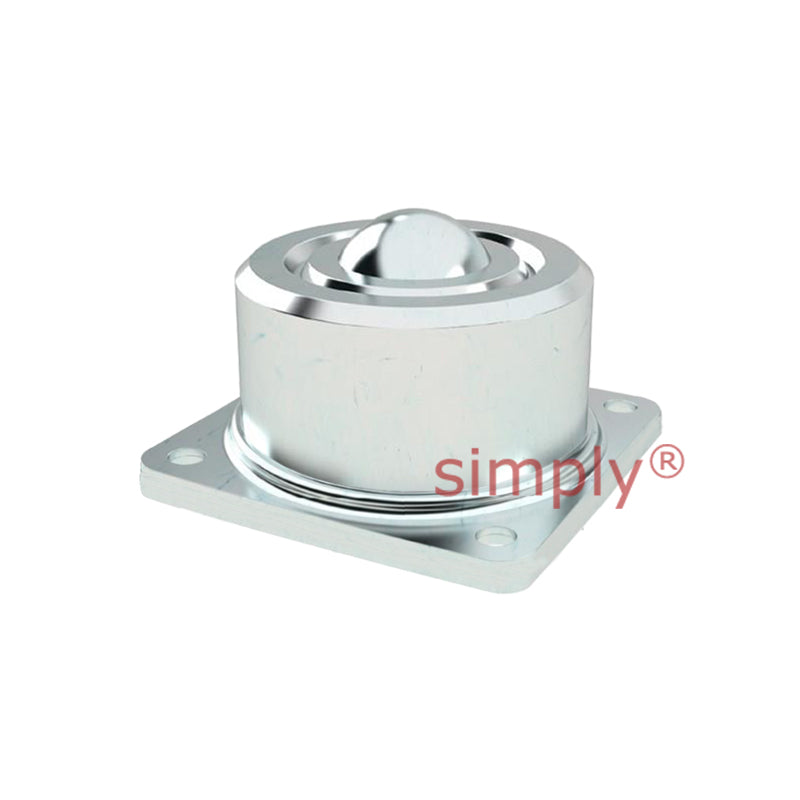

High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 38.1mm Steel Ball - Load Capacity 1000kg - Allow 2-3 Days
High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 38.1mm Steel Ball - Load Capacity 1000kg - Allow 2-3 Days
Regular price
$170.33
ex VAT
Regular price
Sale price
$170.33
ex VAT
In stock
Price Break
10+
$151.59
19+
$143.08
29+
$141.37
39+
$139.67
49+
$137.97
74+
$136.26
99+
$127.75
199+
$126.04
249+
$124.34
499+
$122.64
999+
$119.23
Description
Description
Surface Fixed Base Mount Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Base mount ball transfer units are equipped with flange-mounted holes that enable users to securely anchor the unit onto the base of a flat surface, enhancing stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
- Brand / Quality:
- Simply Ball Transfer Units
- Outside Diameter:
- 38.1mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Ball Diameter | 38.1mm |
| Y | 61.5mm |
| W | 48.8mm |
| D | 60.3mm |
| FXF | 76.2mm |
| CXC | 57.9mm |
| T | 12.7mm |
| E | 4x7.1mm |
| --- | Loads and Speeds |
| Load Capacity | 1000 kg |
| Load capacity | 2240 lbs |
| Weight | 1.26 kg |
| --- | Materials |
| Material | Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo |
