SKU: 570-305

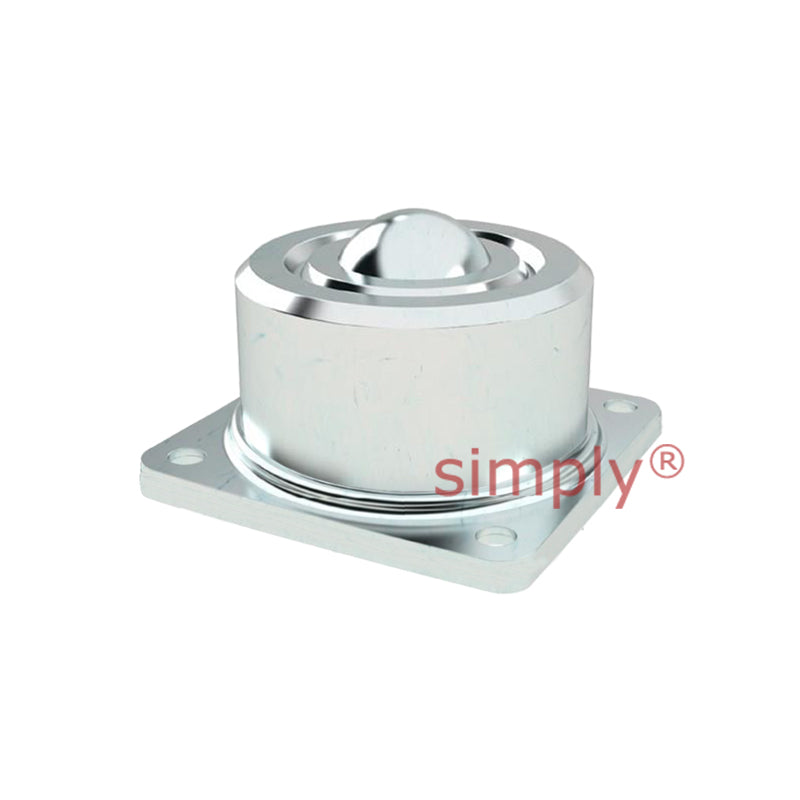

High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 2000kg - Allow 2-3 Days
High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 2000kg - Allow 2-3 Days
Regular price
$495.04
ex VAT
Regular price
Sale price
$495.04
ex VAT
In stock
Price Break
10+
$440.59
19+
$415.83
29+
$410.88
39+
$405.93
49+
$400.98
74+
$396.03
99+
$371.28
199+
$366.33
249+
$361.38
499+
$356.43
999+
$346.53
Description
Description
Surface Fixed Base Mount Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Base mount ball transfer units are equipped with flange-mounted holes that enable users to securely anchor the unit onto the base of a flat surface, enhancing stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
- Brand / Quality:
- Simply Ball Transfer Units
- Outside Diameter:
- 50.8mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Ball Diameter | 50.8mm |
| Y | 98.4mm |
| W | 82.6mm |
| D | 105-111mm |
| FXF | 127mm |
| CXC | 101.6mm |
| T | 9.6mm |
| E | 4x10.3mm |
| --- | Loads and Speeds |
| Load Capacity | 2000 kg |
| Load capacity | 4480 lbs |
| Weight | 6.05 kg |
| --- | Materials |
| Material | Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo |
