SKU: 570-403

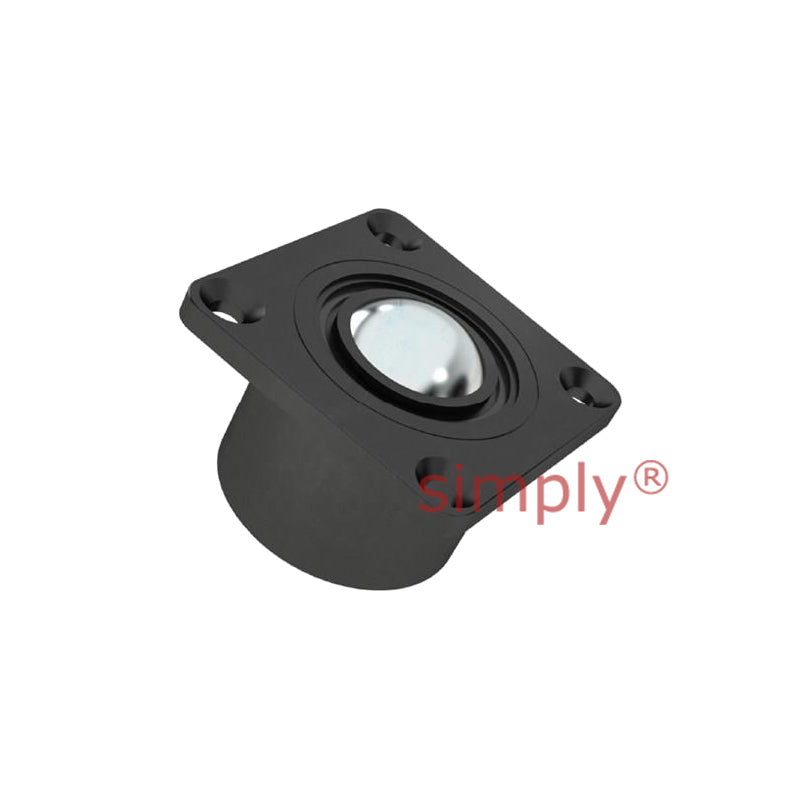

High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 327kg - Allow 2-3 Days
High-Performance High Capacity 4 Bolt Top Mounted Square Ball Transfer Unit with 25.4mm Steel Ball - Load Capacity 327kg - Allow 2-3 Days
Regular price
$116.43
ex VAT
Regular price
Sale price
$116.43
ex VAT
In stock
Price Break
10+
$103.62
19+
$97.80
29+
$96.64
39+
$95.47
49+
$94.31
74+
$93.14
99+
$87.32
199+
$86.16
249+
$84.99
499+
$83.83
999+
$81.50
Description
Description
Surface Fixed Top Mount Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Top mount ball transfer units feature flange-mounted holes that enable users to securely attach them to a flat surface in a top position, ensuring enhanced stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
- Brand / Quality:
- Simply Ball Transfer Units
- Outside Diameter:
- 25.4mm
Technical
Technical

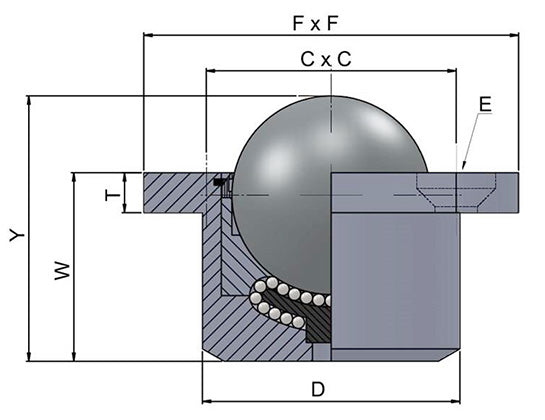

| --- | Dimensions |
|---|---|
| Ball Diameter | 25.4mm |
| Y mm | 44.5mm |
| W mm | 38.2mm |
| D mm | 50.8mm |
| FXF mm | 76.2mm |
| CXC mm | 57.9mm |
| T mm | 6.4mm |
| E(Dia) mm | 4x7.1mm |
| --- | Loads and Speeds |
| Load Capacity | 327 kg |
| Load capacity Ibs | 720 lbs |
| Weight | 0.7 kg |
| --- | Materials |
| Material | Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo |
| Mounting Type | Square |
