SKU: 60-1-NO12-DUN
Branded 60-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Branded 60-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 3/4 inch Pitch
Regular price
$6.47
ex VAT
Regular price
Sale price
$6.47
ex VAT
Equivalent to: 60-1-OL
In stock
Price Break
10+
$5.76
19+
$5.43
29+
$5.37
39+
$5.31
49+
$5.24
74+
$5.18
99+
$4.85
199+
$4.79
249+
$4.72
499+
$4.66
999+
$4.53
Description
Description

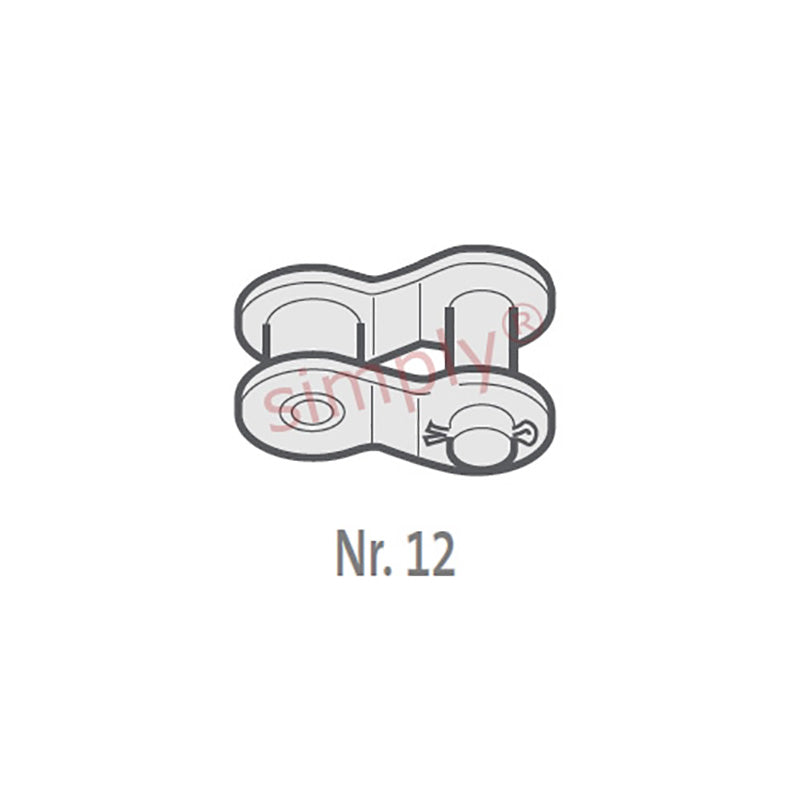

Branded OL / No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 60-1-OL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 12.57mm |
| Roller Diameter max (C) | 11.91mm |
| Plate Height max (D) | 18mm |
| Plate Width Inner max (E) | 2.4mm |
| Plate Width Outer max (F) | 2.4mm |
| Pin Diameter max (G) | 5.94mm |
| Pin Length max (H1) | 25.9mm |
| Connecting Link Extension max (J) | 1.6mm |
| ISO606 Tensile Strength min | 31300 N |
| Weight | 1.5kg/m |
