SKU: 60/28NR-RS-EU

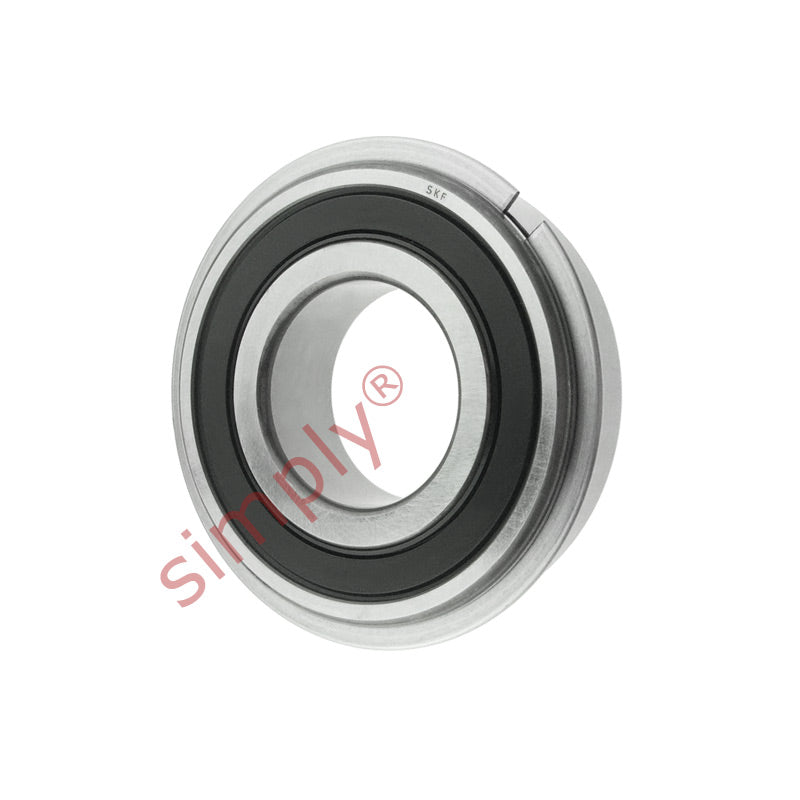

60/28NRRS Budget Rubber Sealed Deep Groove Ball Bearing with Snap Ring 28x52x12mm - Allow 2-3 Days
In stock
Price Break
Description
|
Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, these bearing types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 52mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| d | 28mm |
|---|---|
| D | 52mm |
| B | 12mm |
| Dynamic load C | 15.6 kN |
| Static load Co | 7.4 kN |
| Limiting speed | 16000 rpm |
| D2 | 57.9mm |
| da min | 32mm |
| Da max | 48mm |
| ra max | 0.6mm |
| Calculation factor f0 | 14.5 |
