SKU: 6001JRX-NTN

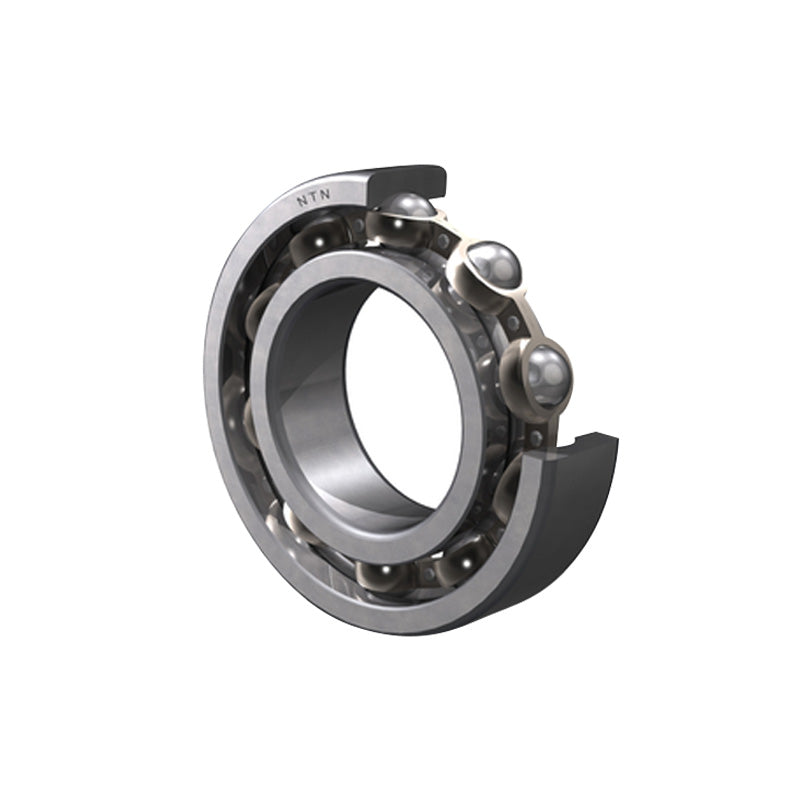

NTN 6001JRX Open Type Deep Groove Ball Bearing 12x28x8mm
NTN 6001JRX Open Type Deep Groove Ball Bearing 12x28x8mm
Regular price
$5.91
ex VAT
Regular price
Sale price
$5.91
ex VAT
Equivalent to: 6001JRXCM 9101K 9101 101KS 6101 3L01 EL12 ELL12
In stock
Price Break
10+
$5.26
19+
$4.96
29+
$4.91
39+
$4.85
49+
$4.79
74+
$4.73
99+
$4.43
199+
$4.37
249+
$4.31
499+
$4.26
999+
$4.14
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6001JRXCM 9101K 9101 101KS 6101 3L01 EL12 ELL12
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 8mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 12mm |
| D | 28mm |
| B | 8mm |
| r<sub>s</sub> min | 0.3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 5.65 kN |
| C<sub>or</sub> | 2.39 kN |
| C<sub>u</sub> | 0.182 kN |
| f<sub>0</sub> | 13.2 kN |
| Grease | 26000 rpm |
| Oil | 30000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 14mm |
| D<sub>a</sub> Max. | 26mm |
| r<sub>as</sub> Max. | 0.3mm |
| Weight | 0.021 kg |
