SKU: 6003-2Z/C3-EU

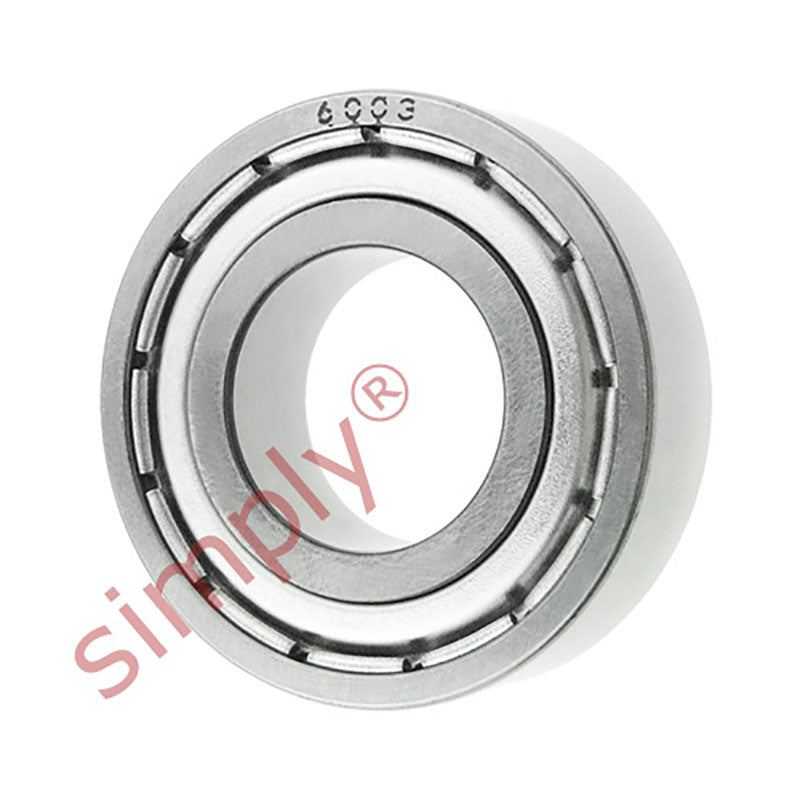

6003ZZC3 Budget Metal Shielded Deep Groove Ball Bearing 17x35x10mm
Equivalent to: 6003.2ZC3 6003KDDC3 6003DDC3 6003FFC3 60032ZRC3 60032ZRC3 6003ZZEC3 6003ZZC3
In stock
Price Break
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6003.2ZC3 6003KDDC3 6003DDC3 6003FFC3 60032ZRC3 60032ZRC3 6003ZZEC3 6003ZZC3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 35mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 17mm |
|---|---|
| D | 35mm |
| B | 10mm |
| r min | 0.3mm |
| Dynamic load Cr | 6 kN |
| Static load Cor | 3.25 kN |
| Speed in grease | 21000 rpm |
| Speed in oil | 25000 rpm |
