SKU: 6006NR/C3-SKF

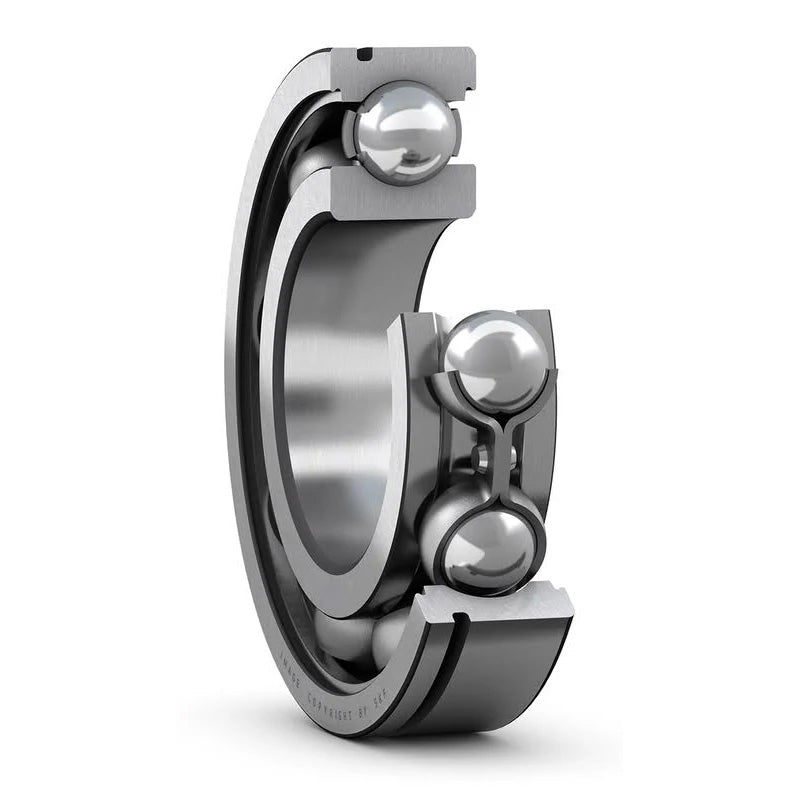

SKF 6006NRC3 Open Type Snap Ring Deep Groove Bearing 30x55x13mm
SKF 6006NRC3 Open Type Snap Ring Deep Groove Bearing 30x55x13mm
Regular price
$13.53
ex VAT
Regular price
Sale price
$13.53
ex VAT
In stock
Price Break
10+
$12.04
19+
$11.37
29+
$11.23
39+
$11.09
49+
$10.96
74+
$10.82
99+
$10.15
199+
$10.01
249+
$9.88
499+
$9.74
999+
$9.47
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 13mm |
| Dynamic load C | 13.8 kN |
| Static load Co | 8.3 kN |
| Fatigue load limit Pu | 355 kN |
| Reference speed | 28000 rpm |
| Limiting speed | 17000 rpm |
| Weight | 0.12kg |
| Snap ring | SP 55 |
| d1 | 38.2mm |
| D2 | 49mm |
| D3 | 52.6mm |
| D4 | 60.7mm |
| b | 1.35mm |
| f | 1.12mm |
| C | 2.06mm |
| r1r2 min | 1mm |
| ro max | 0.4mm |
| da min | 34.6mm |
| Da max | 50.4mm |
| Db min | 62mm |
| ba min | 1.5mm |
| Ca max | 3.18mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 15 |
