SKU: 6006NR-NSK

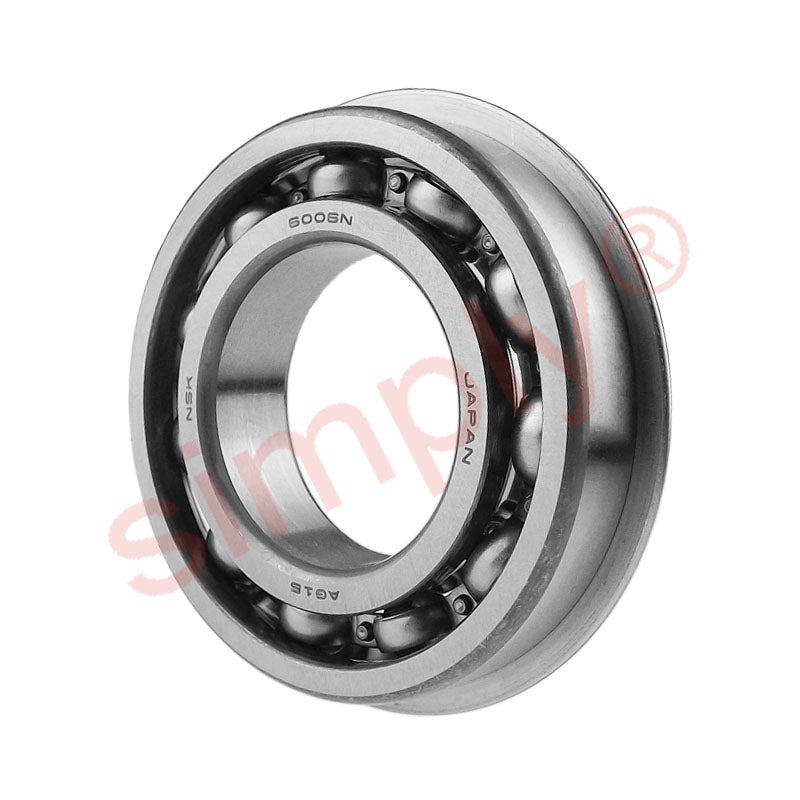

NSK 6006NR Open Type Deep Groove Ball Bearing With Snap Ring 30x55x13mm
NSK 6006NR Open Type Deep Groove Ball Bearing With Snap Ring 30x55x13mm
Regular price
$10.36
ex VAT
Regular price
Sale price
$10.36
ex VAT
In stock
Price Break
10+
$9.22
19+
$8.70
29+
$8.60
39+
$8.50
49+
$8.39
74+
$8.29
99+
$7.77
199+
$7.67
249+
$7.56
499+
$7.46
999+
$7.25
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 55mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 30mm |
|---|---|
| D | 55mm |
| B | 13mm |
| r min | 0.5mm |
| Dynamic load Cr | 13200 N (13200 kgf) |
| Static load Cor | 8300 N (8300 kgf) |
| Speed in grease | 13000 rpm |
| Speed in oil | 15000 rpm |
| a max | 2.08mm |
| b min | 1.35mm |
| D1 max | 52.6mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 60.7mm |
| f max | 1.12mm |
| da2 min | 60.7mm |
| da2max | 1.12mm |
| Da2max | 50mm |
| ra max | 1mm |
| Dx min | 61.5mm |
| Cy max | 2.9mm |
| Weight | 0.116 kg |
