SKU: 6008NR-SKF

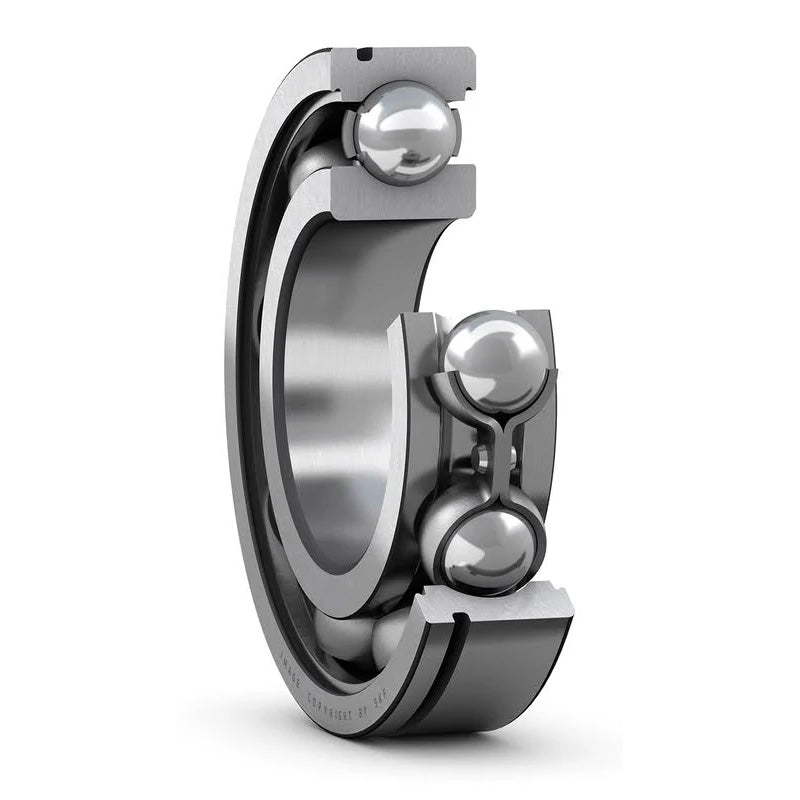

SKF 6008NR Open Type Snap Ring Deep Groove Bearing 40x68x15mm
SKF 6008NR Open Type Snap Ring Deep Groove Bearing 40x68x15mm
Regular price
$41.90
ex VAT
Regular price
Sale price
$41.90
ex VAT
In stock
Price Break
10+
$37.29
19+
$35.20
29+
$34.78
39+
$34.36
49+
$33.94
74+
$33.52
99+
$31.43
199+
$31.01
249+
$30.59
499+
$30.17
999+
$29.33
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 40mm |
|---|---|
| D | 68mm |
| B | 15mm |
| Dynamic load C | 17.8 kN |
| Static load Co | 11 kN |
| Fatigue load limit Pu | 0.49 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.19kg |
| Snap ring | SP 68 |
| d1 | 49.2mm |
| D2 | 61.1mm |
| D3 | 64.82mm |
| D4 | 74.6mm |
| b | 1.9mm |
| f | 1.7mm |
| C | 2.49mm |
| r1r2 min | 1mm |
| ro max | 0.6mm |
| da min | 44.6mm |
| Da max | 63.4mm |
| Db min | 76mm |
| ba min | 2.2mm |
| Ca max | 4.19mm |
| ra max | 1mm |
| Calc Factor kr | 0.025 |
| fo | 15 |
