SKU: 6010C3-NTN

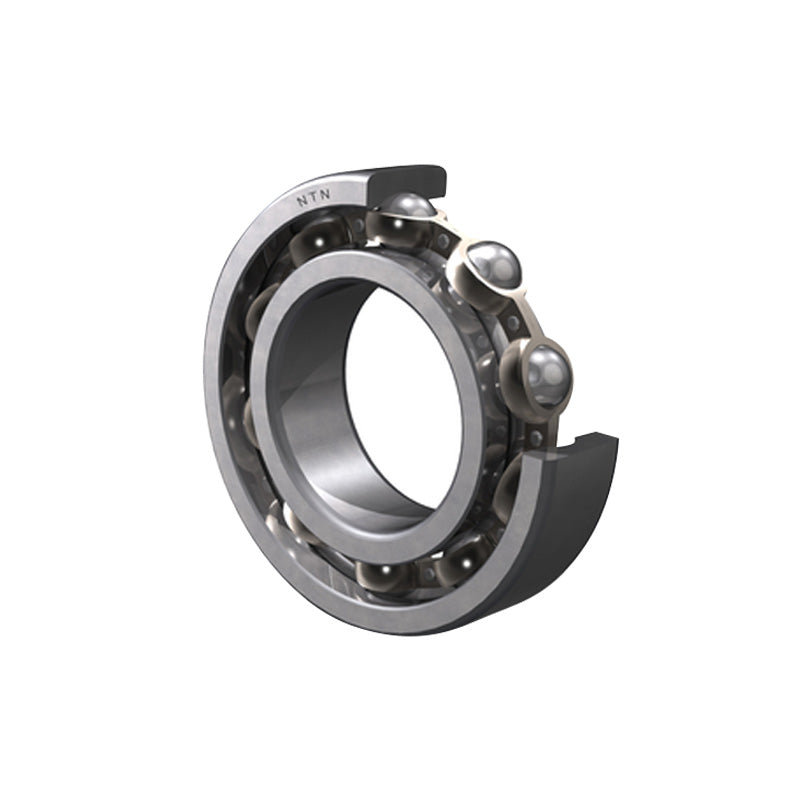

NTN 6010C3 Open Type Deep Groove Ball Bearing 50x80x16mm
NTN 6010C3 Open Type Deep Groove Ball Bearing 50x80x16mm
Regular price
$28.10
ex VAT
Regular price
Sale price
$28.10
ex VAT
Equivalent to: 9110KC3 9110C3 110KSC3 6110C3 3L10C3 EL50C3 ELL50C3
In stock
Price Break
10+
$25.01
19+
$23.60
29+
$23.32
39+
$23.04
49+
$22.76
74+
$22.48
99+
$21.08
199+
$20.79
249+
$20.51
499+
$20.23
999+
$19.67
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 9110KC3 9110C3 110KSC3 6110C3 3L10C3 EL50C3 ELL50C3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 80mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 24.2 kN |
| C<sub>or</sub> | 16.6 kN |
| C<sub>u</sub> | 1.24 kN |
| f<sub>0</sub> | 15.5 kN |
| Grease | 8400 rpm |
| Oil | 9800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 55mm |
| D<sub>a</sub> Max. | 75mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.261 kg |
