SKU: 6022-NTN

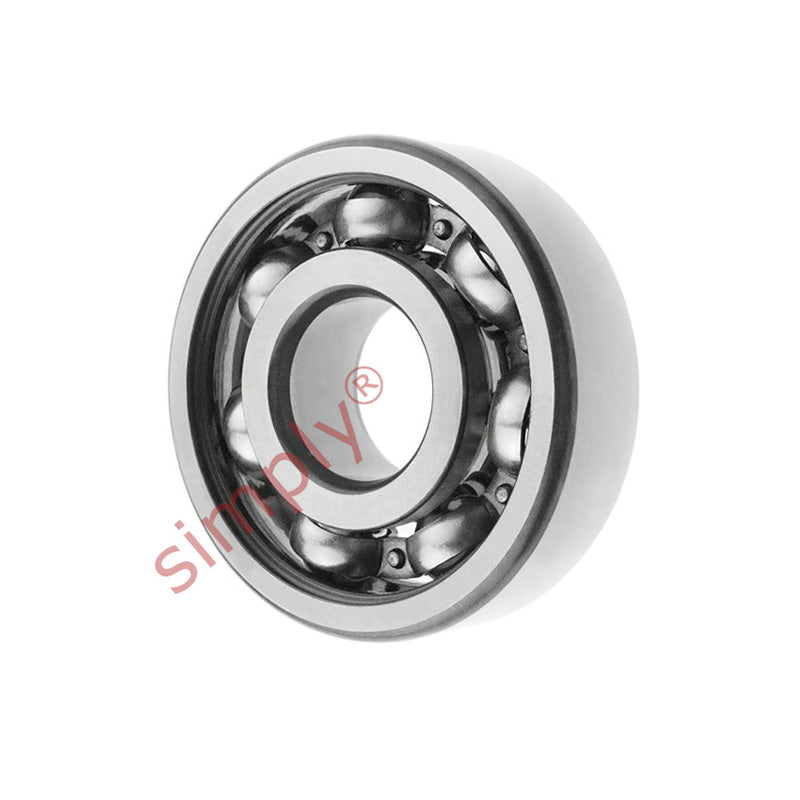

NTN 6022 Open Type Deep Groove Ball Bearing 110x170x28mm
NTN 6022 Open Type Deep Groove Ball Bearing 110x170x28mm
Regular price
$188.02
ex VAT
Regular price
Sale price
$188.02
ex VAT
Equivalent to: 6022CM 9122K 9122 122KS 6122 3L22 EL110 ELL110
In stock
Price Break
10+
$167.34
19+
$157.94
29+
$156.06
39+
$154.18
49+
$152.30
74+
$150.42
99+
$141.02
199+
$139.13
249+
$137.25
499+
$135.37
999+
$131.61
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6022CM 9122K 9122 122KS 6122 3L22 EL110 ELL110
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 170mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 110mm |
| D | 170mm |
| B | 28mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 91 kN |
| C<sub>or</sub> | 73 kN |
| C<sub>u</sub> | 4.55 kN |
| f<sub>0</sub> | 15.6 kN |
| Grease | 3800 rpm |
| Oil | 4500 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 119mm |
| D<sub>a</sub> Max. | 161mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 1.96 kg |
