SKU: 6202-2Z/C3-EU

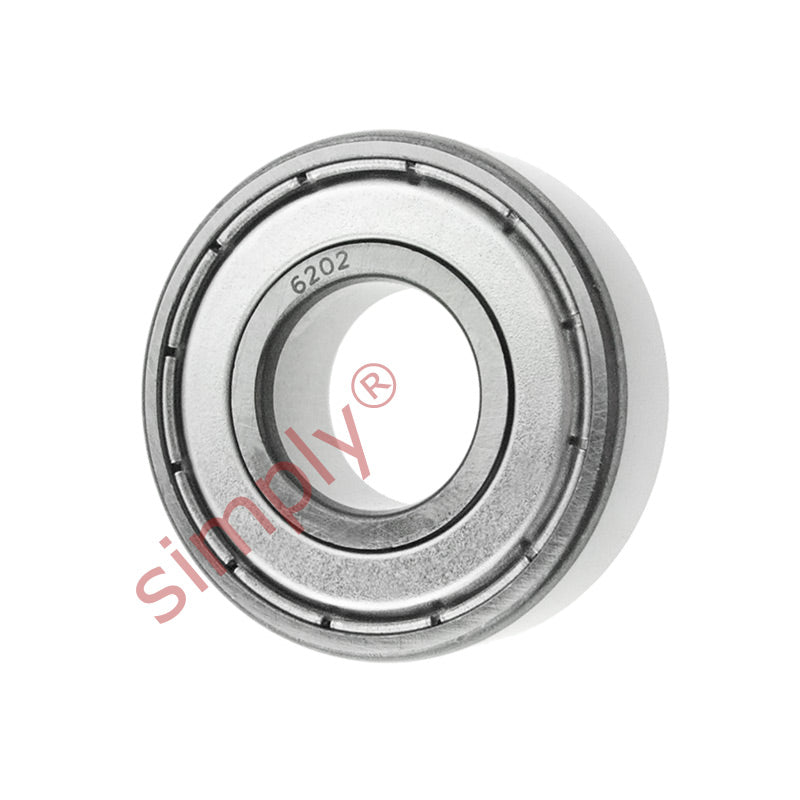

6202ZZC3 Budget Metal Shielded Deep Groove Ball Bearing 15x35x11mm
Equivalent to: 6202.2ZC3 6202KDDC3 6202DDC3 6202FFC3 62022ZRC3 62022ZRC3 6202ZZEC3 6202ZZC3
In stock
Price Break
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6202.2ZC3 6202KDDC3 6202DDC3 6202FFC3 62022ZRC3 62022ZRC3 6202ZZEC3 6202ZZC3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| r min | 0.6mm |
| Dynamic load Cr | 7.65 kN |
| Static load Cor | 3.75 kN |
| Speed in grease | 20000 rpm |
| Speed in oil | 24000 rpm |
