SKU: 6202NR-MB

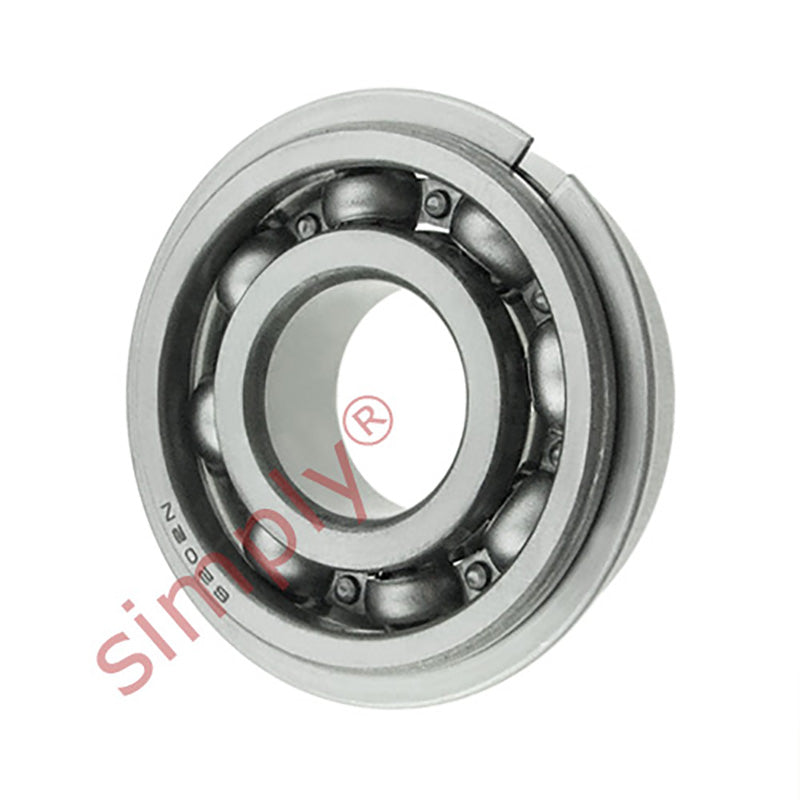

6202NR Deep Groove Ball Bearing with Snap Ring 15x35x11mm
6202NR Deep Groove Ball Bearing with Snap Ring 15x35x11mm
Regular price
$14.29
ex VAT
Regular price
Sale price
$14.29
ex VAT
In stock
Price Break
10+
$12.72
19+
$12.00
29+
$11.86
39+
$11.72
49+
$11.57
74+
$11.43
99+
$10.72
199+
$10.57
249+
$10.43
499+
$10.29
999+
$10.00
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| Dyamic load C | 8.06 kN |
| Static load Co | 3.75 kN |
| Fatigue load limit Pu | 0.16 kN |
| Reference speed | 43000 rpm |
| Limiting speed | 28000 rpm |
| Mass | 0.045 kg |
| d1 | 21.7mm |
| d2 | 29mm |
| D2 | 30.4mm |
| r1r2 min | 0.6mm |
| da min | 19.2 |
