SKU: 6203-HT-330

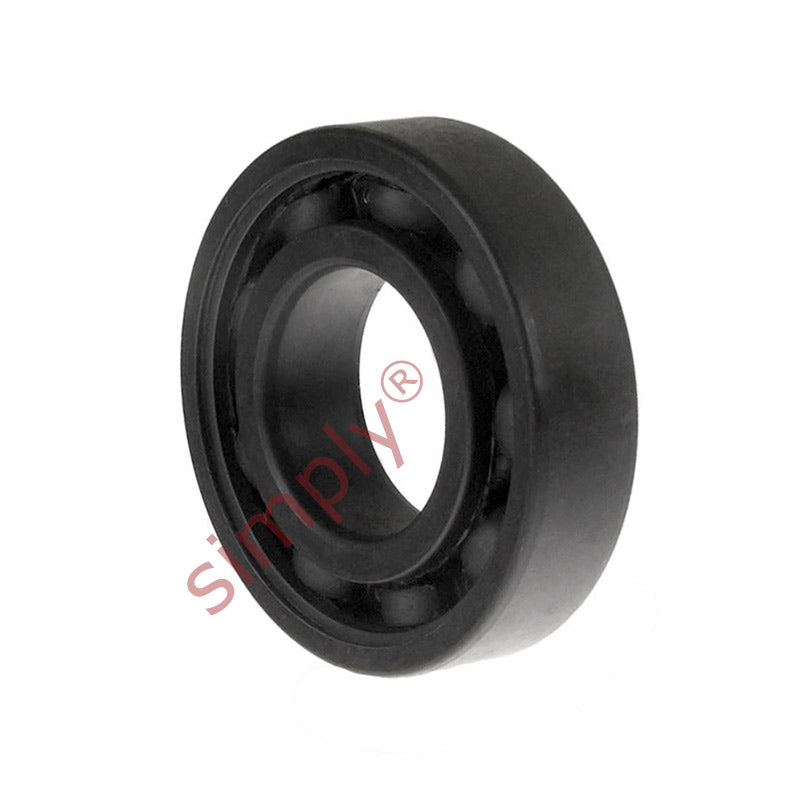

6203HT330 High Temp 330C Open Deep Groove Ball Bearing 17x40x12mm Max 220rpm
6203HT330 High Temp 330C Open Deep Groove Ball Bearing 17x40x12mm Max 220rpm
Regular price
$14.96
ex VAT
Regular price
Sale price
$14.96
ex VAT
Equivalent to: 6203VA201 6203VA208 6203VA228
In stock
Price Break
10+
$13.31
19+
$12.57
29+
$12.42
39+
$12.27
49+
$12.12
74+
$11.97
99+
$11.22
199+
$11.07
249+
$10.92
499+
$10.77
999+
$10.47
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6203VA201 6203VA208 6203VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Temperature Range:
- High Temp
Technical
Technical

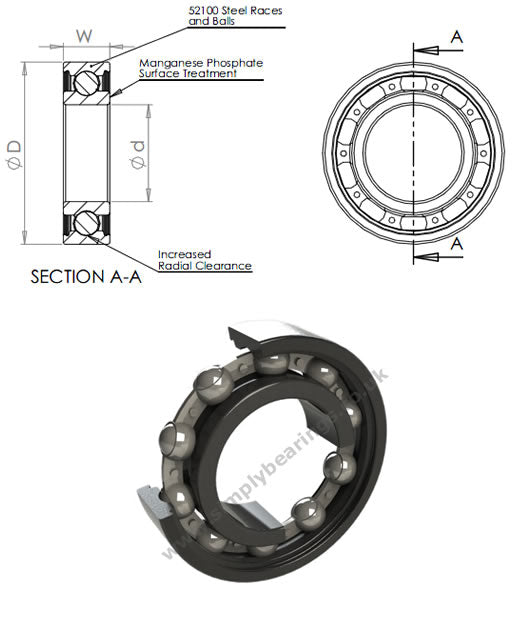

| Inside diameter d | 17mm |
|---|---|
| Outside diameter D | 40mm |
| Width W | 12mm |
| Static load max | 2.75 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 220 rpm |
| Weight | 65 g |
