SKU: 6203NRC3-NTN

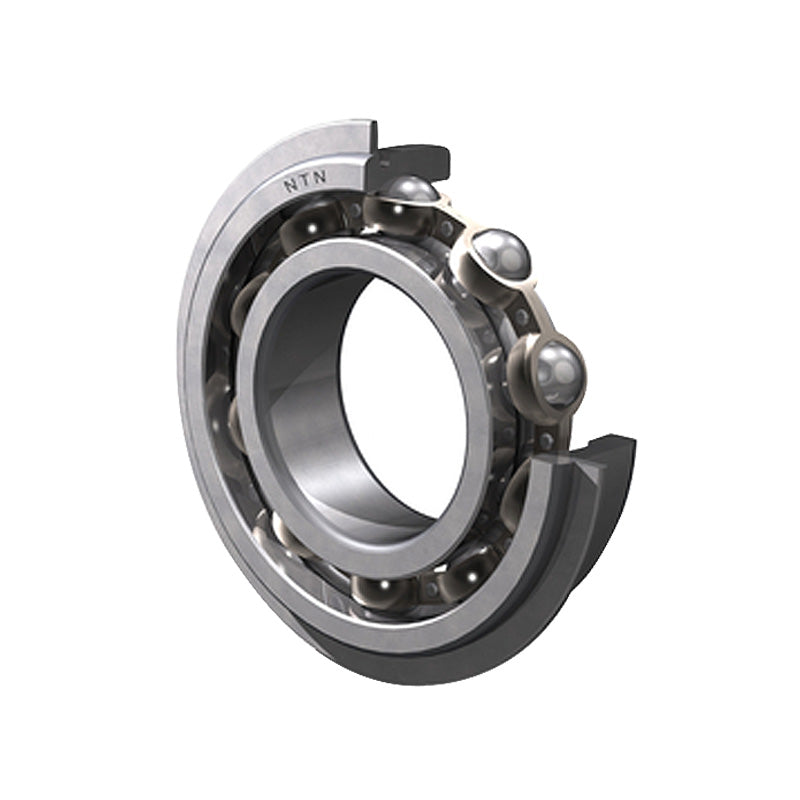

NTN 6203NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 17x40x12mm
NTN 6203NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 17x40x12mm
Regular price
$14.86
ex VAT
Regular price
Sale price
$14.86
ex VAT
Equivalent to: 203KGC3 203SGC3 43203C3
In stock
Price Break
10+
$13.23
19+
$12.48
29+
$12.33
39+
$12.19
49+
$12.04
74+
$11.89
99+
$11.15
199+
$11.00
249+
$10.85
499+
$10.70
999+
$10.40
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 203KGC3 203SGC3 43203C3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 17mm |
| D | 40mm |
| B | 12mm |
| r<sub>s</sub> min | 0.6mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 10.6 kN |
| C<sub>or</sub> | 4.6 kN |
| C<sub>u</sub> | 0.355 kN |
| f<sub>0</sub> | 12.8 kN |
| Grease | 18000 rpm |
| Oil | 21000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 38.1mm |
| a Max. | 2.06mm |
| b Min. | 1.35mm |
| r<sub>o</sub> Max. | 0.4mm |
| D<sub>2</sub> Max. | 44.6mm |
| f Max. | 1.12mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 21mm |
| d<sub>a</sub> Max. | 23mm |
| D<sub>a</sub> Max. | 36mm |
| D<sub>X</sub> (approx) | 45.5mm |
| C<sub>Y</sub> Max. | 2.9mm |
| C<sub>Z</sub> Min. | 1.2mm |
| r<sub>as</sub> Max. | 0.6mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.066 kg |
