SKU: 6205-HT-330

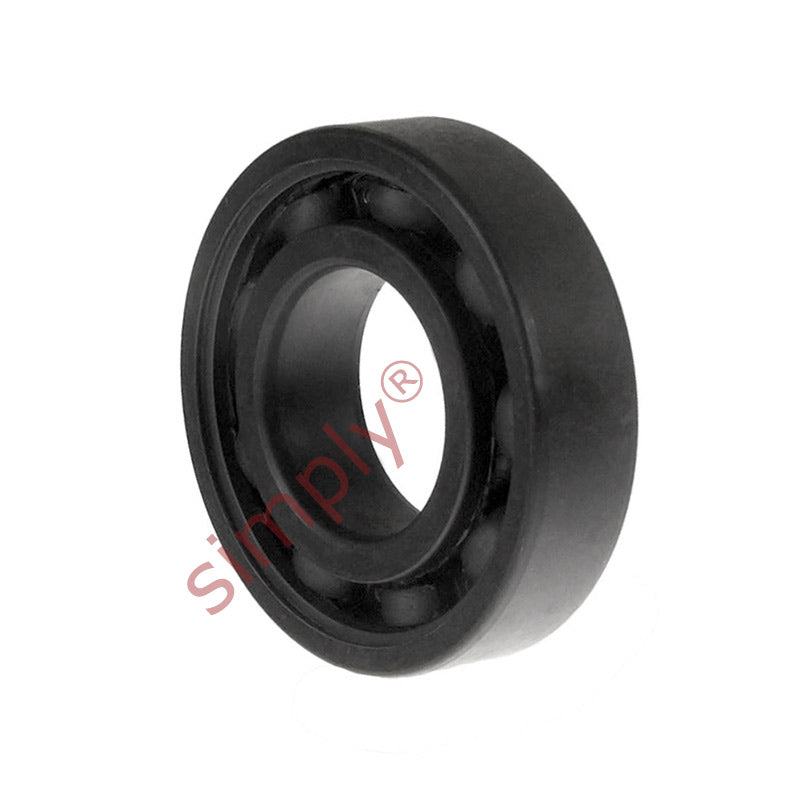

6205HT330 High Temp 330C Open Deep Groove Ball Bearing 25x52x15mm Max 160rpm
6205HT330 High Temp 330C Open Deep Groove Ball Bearing 25x52x15mm Max 160rpm
Regular price
$12.23
ex VAT
Regular price
Sale price
$12.23
ex VAT
Equivalent to: 6205VA201 6205VA208 6205VA228
In stock
Price Break
10+
$10.88
19+
$10.27
29+
$10.15
39+
$10.03
49+
$9.91
74+
$9.78
99+
$9.17
199+
$9.05
249+
$8.93
499+
$8.81
999+
$8.56
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6205VA201 6205VA208 6205VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 25mm |
|---|---|
| Outside diameter D | 52mm |
| Width W | 15mm |
| Static load max | 4.62 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 160 rpm |
| Weight | 130 g |
