SKU: 6206NR-NSK

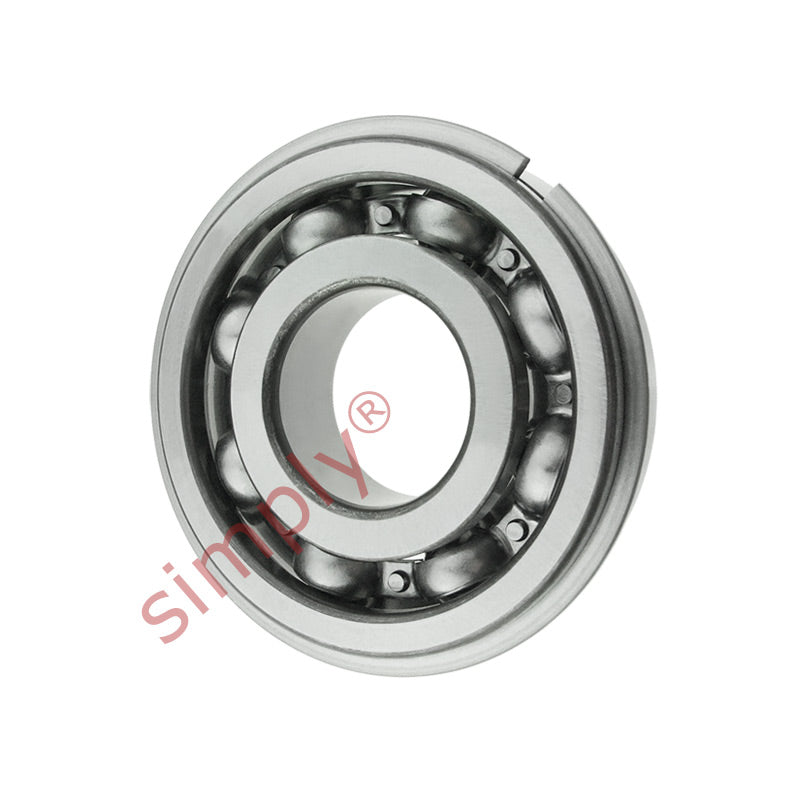

NSK 6206NR Open Type Deep Groove Ball Bearing With Snap Ring 30x62x16mm
NSK 6206NR Open Type Deep Groove Ball Bearing With Snap Ring 30x62x16mm
Regular price
$13.41
ex VAT
Regular price
Sale price
$13.41
ex VAT
In stock
Price Break
10+
$11.93
19+
$11.26
29+
$11.13
39+
$11.00
49+
$10.86
74+
$10.73
99+
$10.06
199+
$9.92
249+
$9.79
499+
$9.66
999+
$9.39
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 30mm |
|---|---|
| D | 62mm |
| B | 16mm |
| r min | 1mm |
| Dynamic load Cr | 19500 N (1980 kgf) |
| Static load Cor | 11300 N (1150 kgf) |
| Factor | 13.8 |
| Speed in grease | 11000 rpm |
| Speed in oil | 13000 rpm |
| a max | 3.28mm |
| b min | 1.9mm |
| D1 max | 59.61mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 67.7mm |
| f max | 1.7mm |
| da2 min | 35mm |
| da2max | 38.5mm |
| Da2max | 57mm |
| ra max | 1mm |
| Dx min | 68.5mm |
| Cy max | 4.6mm |
| Weight | 0.199 kg |
