SKU: 6208-2Z/C3-EU

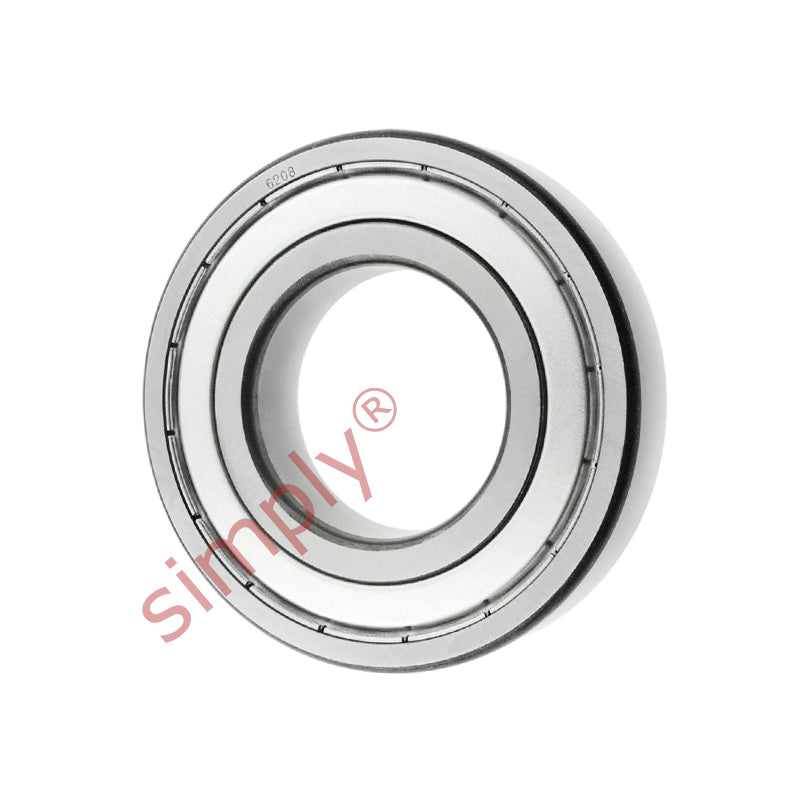

6208ZZC3 Budget Metal Shielded Deep Groove Ball Bearing 40x80x18mm
Equivalent to: 6208.2ZC3 6208KDDC3 6208DDC3 6208FFC3 62082ZRC3 62082ZRC3 6208ZZEC3 6208ZZC3
In stock
Price Break
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6208.2ZC3 6208KDDC3 6208DDC3 6208FFC3 62082ZRC3 62082ZRC3 6208ZZEC3 6208ZZC3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 18mm |
| r min | 1.1mm |
| Dynamic load Cr | 29.1 kN |
| Static load Cor | 17.8 kN |
| Speed in grease | 8300 rpm |
| Speed in oil | 10000 rpm |
