SKU: 6210-HT-330

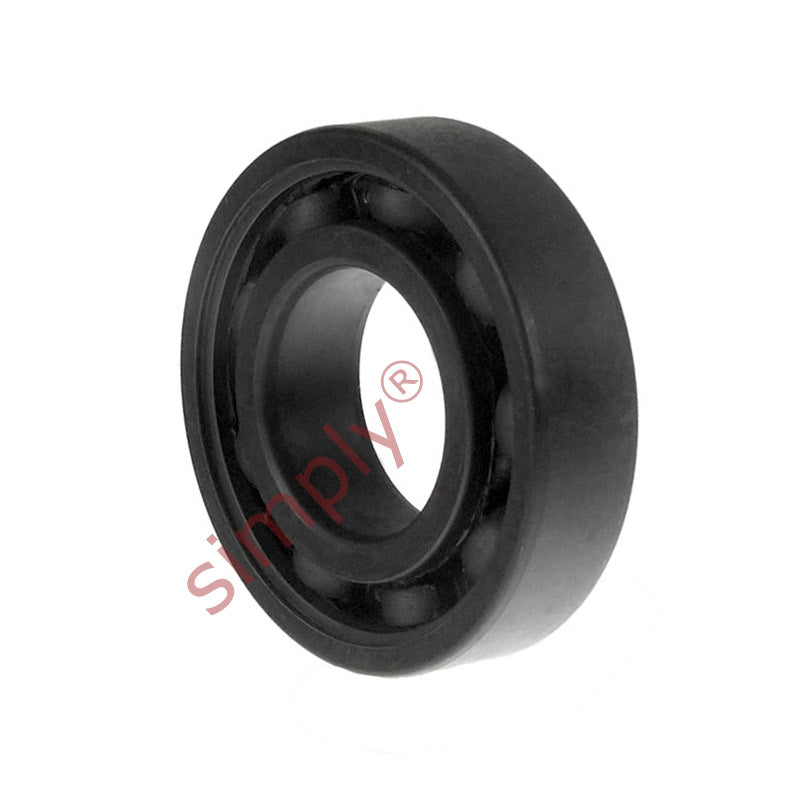

6210HT330 High Temp 330C Open Deep Groove Ball Bearing 50x90x20mm Max 80rpm
6210HT330 High Temp 330C Open Deep Groove Ball Bearing 50x90x20mm Max 80rpm
Regular price
$26.45
ex VAT
Regular price
Sale price
$26.45
ex VAT
Equivalent to: 6210VA201 6210VA208 6210VA228
In stock
Price Break
10+
$23.54
19+
$22.22
29+
$21.95
39+
$21.69
49+
$21.42
74+
$21.16
99+
$19.84
199+
$19.57
249+
$19.31
499+
$19.04
999+
$18.52
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6210VA201 6210VA208 6210VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 50mm |
|---|---|
| Outside diameter D | 90mm |
| Width W | 20mm |
| Static load max | 13.86 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 80 rpm |
| Weight | 460 g |
