SKU: 6211NR/C3-SKF

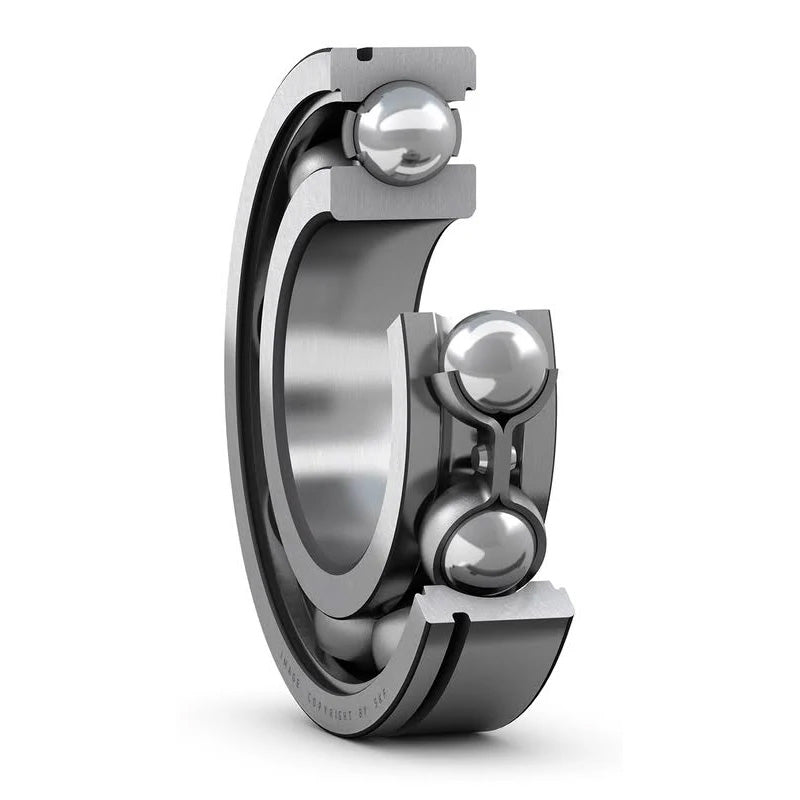

SKF 6211NRC3 Open Type Snap Ring Deep Groove Bearing 55x100x21mm
SKF 6211NRC3 Open Type Snap Ring Deep Groove Bearing 55x100x21mm
Regular price
$56.81
ex VAT
Regular price
Sale price
$56.81
ex VAT
In stock
Price Break
10+
$50.56
19+
$47.72
29+
$47.15
39+
$46.58
49+
$46.02
74+
$45.45
99+
$42.61
199+
$42.04
249+
$41.47
499+
$40.90
999+
$39.77
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 21mm |
| Dynamic load C | 46.2 kN |
| Static load Co | 29 kN |
| Fatigue load limit Pu | 1.25 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.6kg |
| Snap ring | SP 100 |
| d1 | 69mm |
| D2 | 89.4mm |
| D3 | 96.8mm |
| D4 | 106.5mm |
| b | 2.7mm |
| f | 2.46mm |
| C | 3.28mm |
| r1r2 min | 1.5mm |
| ro max | 0.6mm |
| da min | 64mm |
| Da max | 91mm |
| Db min | 108mm |
| ba min | 3mm |
| Ca max | 5.74mm |
| ra max | 1.5mm |
| Calc Factor kr | 0.025 |
| fo | 14 |
