SKU: 6216C4-NTN

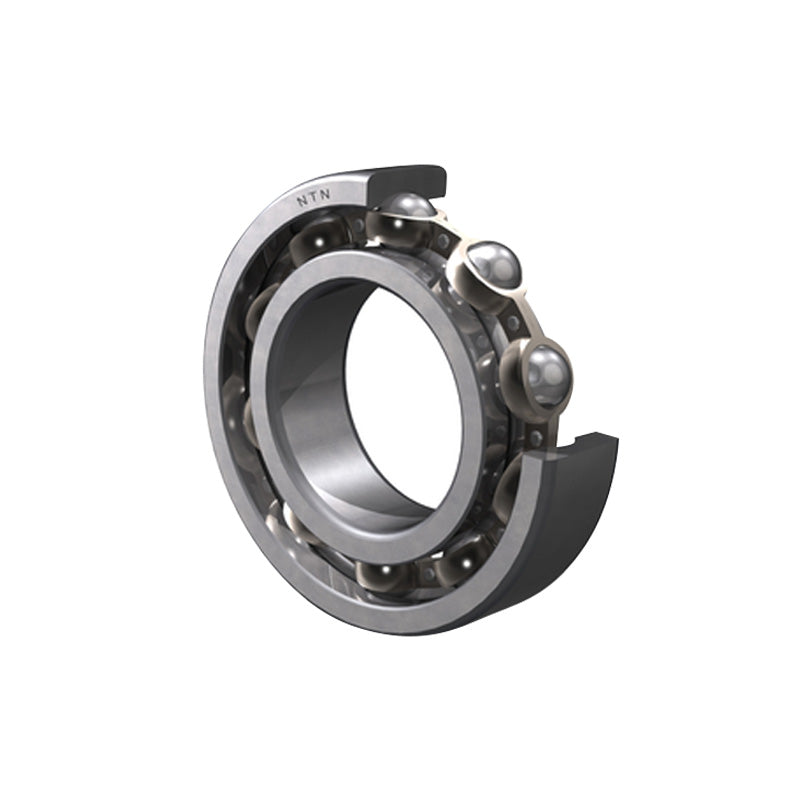

NTN 6216C4 Open Type Deep Groove Ball Bearing 80x140x26mm
NTN 6216C4 Open Type Deep Groove Ball Bearing 80x140x26mm
Regular price
$192.29
ex VAT
Regular price
Sale price
$192.29
ex VAT
Equivalent to: 216KC4 1216C4 216SC4 6216C4 3216C4 13AC4
In stock
Price Break
10+
$171.14
19+
$161.52
29+
$159.60
39+
$157.68
49+
$155.75
74+
$153.83
99+
$144.22
199+
$142.29
249+
$140.37
499+
$138.45
999+
$134.60
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 216KC4 1216C4 216SC4 6216C4 3216C4 13AC4
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 140mm
- Width:
- 26mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 140mm |
| B | 26mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 80.5 kN |
| C<sub>or</sub> | 53 kN |
| C<sub>u</sub> | 3.95 kN |
| f<sub>0</sub> | 14.6 kN |
| Grease | 4500 rpm |
| Oil | 5300 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 89mm |
| D<sub>a</sub> Max. | 131mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 1.4 kg |
