SKU: 6244-NTN

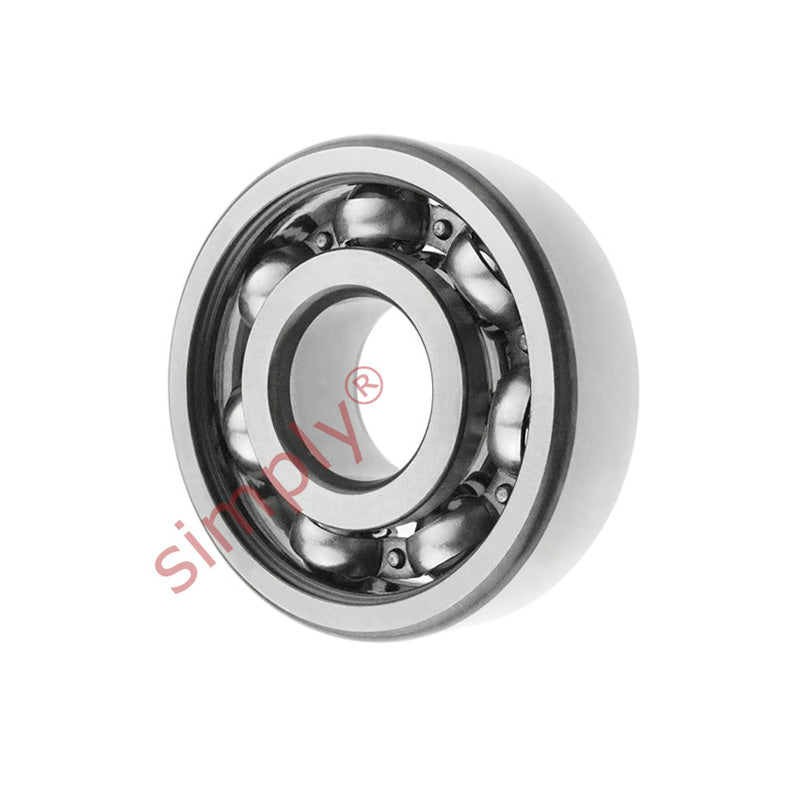

NTN 6244 Open Type Deep Groove Ball Bearing 220x400x65mm
NTN 6244 Open Type Deep Groove Ball Bearing 220x400x65mm
Regular price
$2,323.56
ex VAT
Regular price
Sale price
$2,323.56
ex VAT
Equivalent to: 6244CM 244K 1244 244S 6244 3244
In stock
Price Break
10+
$2,067.97
19+
$1,951.79
29+
$1,928.55
39+
$1,905.32
49+
$1,882.08
74+
$1,858.85
99+
$1,742.67
199+
$1,719.43
249+
$1,696.20
499+
$1,672.96
999+
$1,626.49
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6244CM 244K 1244 244S 6244 3244
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 220mm
- Outside Diameter:
- 400mm
- Width:
- 65mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 220mm |
| D | 400mm |
| B | 65mm |
| r<sub>s</sub> min | 4mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 330 kN |
| C<sub>or</sub> | 365 kN |
| C<sub>u</sub> | 15.8 kN |
| f<sub>0</sub> | 15.3 kN |
| Grease | 1500 rpm |
| Oil | 1800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 236mm |
| D<sub>a</sub> Max. | 384mm |
| r<sub>as</sub> Max. | 3mm |
| Weight | 30.2 kg |
