SKU: 6300-NTN

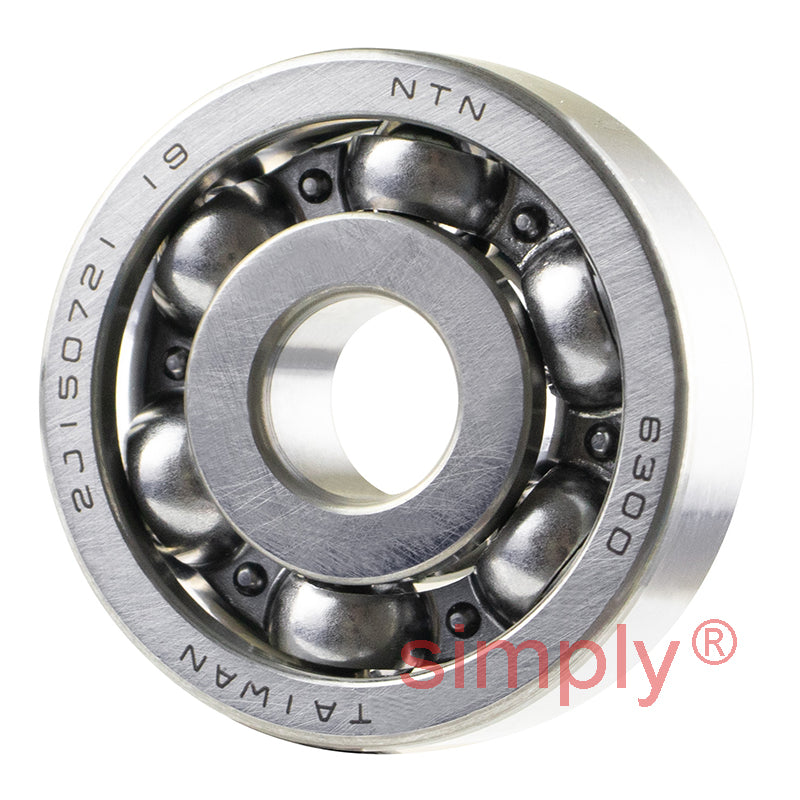

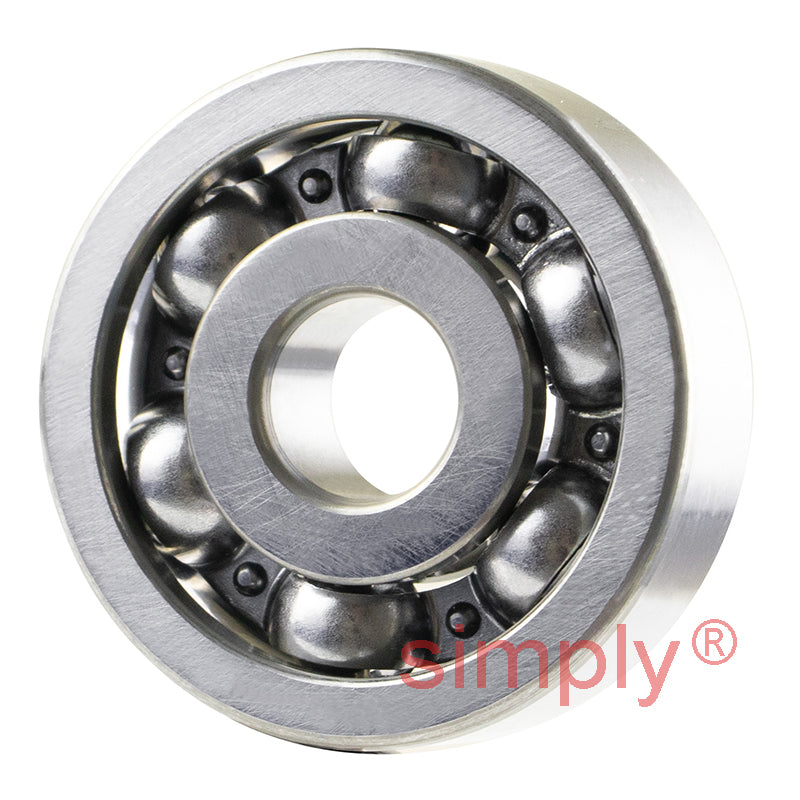

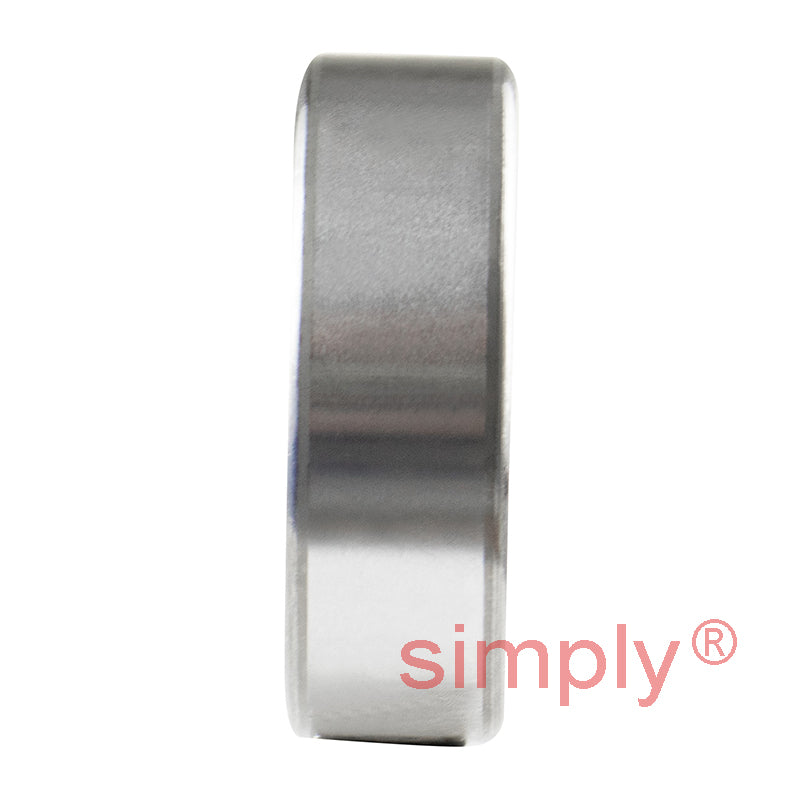

NTN 6300 Open Type Deep Groove Ball Bearing 10x35x11mm
NTN 6300 Open Type Deep Groove Ball Bearing 10x35x11mm
Regular price
$7.96
ex VAT
Regular price
Sale price
$7.96
ex VAT
Equivalent to: 6300CM 300K 1300 300KS 6300 3300 1B
In stock
Price Break
10+
$7.08
19+
$6.69
29+
$6.61
39+
$6.53
49+
$6.45
74+
$6.37
99+
$5.97
199+
$5.89
249+
$5.81
499+
$5.73
999+
$5.57
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6300CM 300K 1300 300KS 6300 3300 1B
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 10mm |
| D | 35mm |
| B | 11mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 9.1 kN |
| C<sub>or</sub> | 3.5 kN |
| C<sub>u</sub> | 0.273 kN |
| f<sub>0</sub> | 11.4 kN |
| Grease | 23000 rpm |
| Oil | 27000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 14mm |
| D<sub>a</sub> Max. | 31mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.053 kg |
