SKU: 6301-2Z/C3-EU

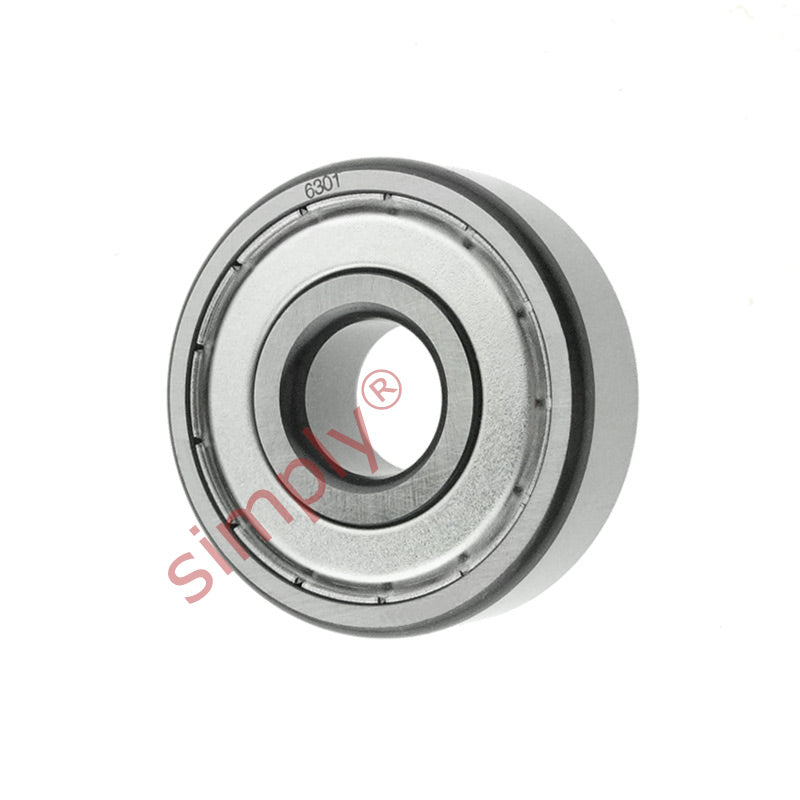

6301ZZC3 Budget Metal Shielded Deep Groove Ball Bearing 12x37x12mm
Equivalent to: 6301.2ZC3 6301KDDC3 6301DDC3 6301FFC3 63012ZRC3 63012ZRC3 6301ZZEC3 6301ZZC3
In stock
Price Break
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6301.2ZC3 6301KDDC3 6301DDC3 6301FFC3 63012ZRC3 63012ZRC3 6301ZZEC3 6301ZZC3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 37mm
- Width:
- 12mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
| d | 12mm |
|---|---|
| D | 37mm |
| B | 12mm |
| r min | 1mm |
| Dynamic load Cr | 9.7 kN |
| Static load Cor | 4.2 kN |
| Speed in grease | 20000 rpm |
| Speed in oil | 25000 rpm |
