SKU: 6306-2RS1/C3-EU

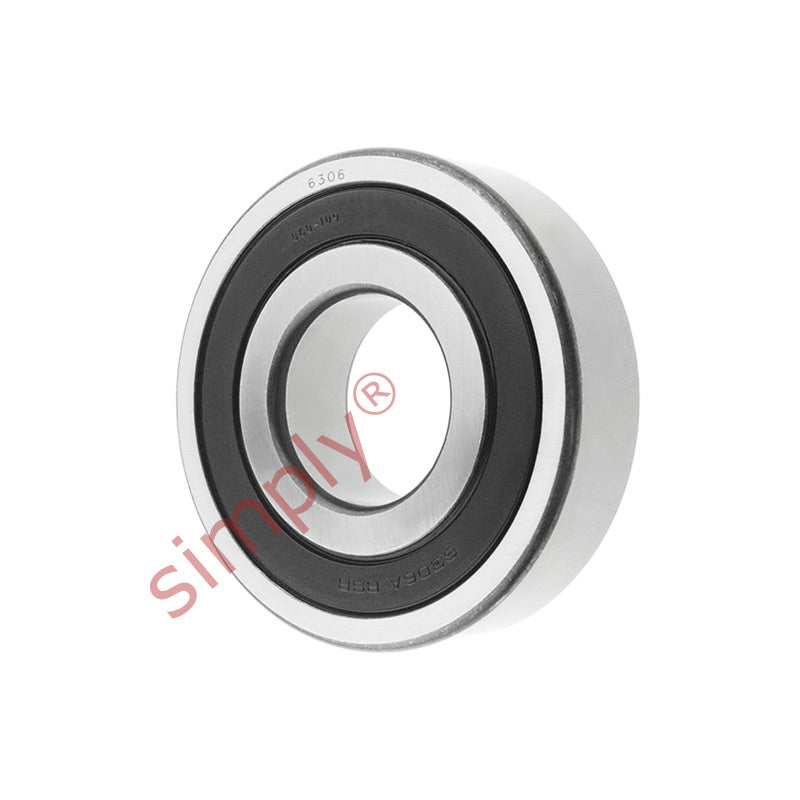

63062RSC3 Budget Rubber Sealed Deep Groove Ball Bearing 30x72x19mm
Equivalent to: 6306NSEC3 6306DUC3 6306RSC3 6306RSHC3 6306PC3 6306RSRC3 6306LUC3 63062NSEC3 6306DDUC3 6306PPC3 63062RSRC3 6306LLUC3 63062RSC3 63062RSC3 63062RS2C3 63062RS1C3 63062RSHC3
In stock
Price Break
Description
|
Budget Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6306NSEC3 6306DUC3 6306RSC3 6306RSHC3 6306PC3 6306RSRC3 6306LUC3 63062NSEC3 6306DDUC3 6306PPC3 63062RSRC3 6306LLUC3 63062RSC3 63062RSC3 63062RS2C3 63062RS1C3 63062RSHC3
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| r min | 1.1mm |
| Dynamic load Cr | 26.7 kN |
| Static load Cor | 15 kN |
| Speed in grease | 9600 rpm |
| Speed in oil | 12000 rpm |
