SKU: 6306-HT-330

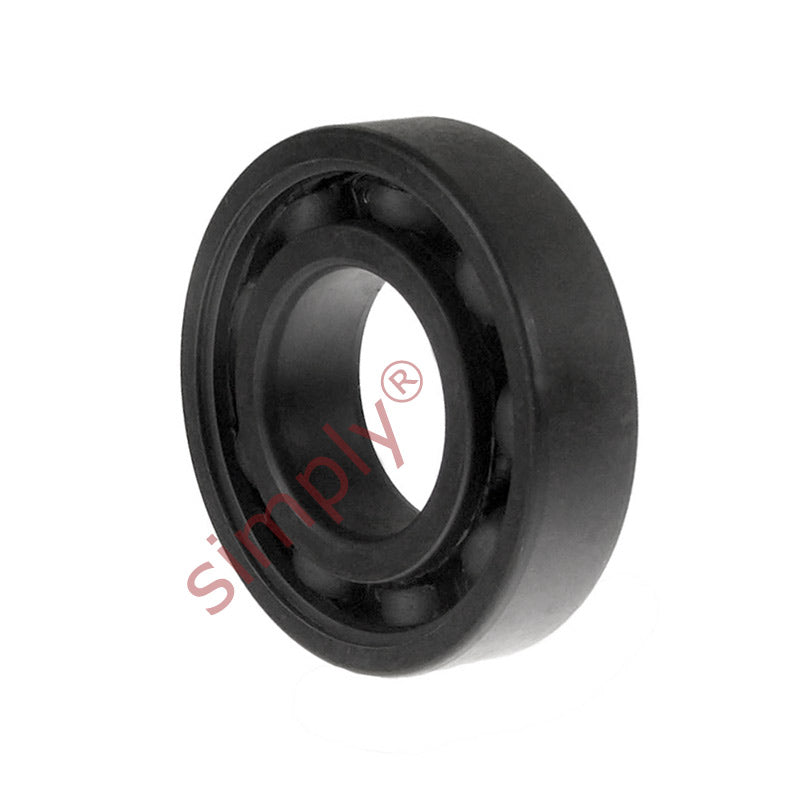

6306HT330 High Temp 330C Open Deep Groove Ball Bearing 30x72x19mm Max 115rpm
6306HT330 High Temp 330C Open Deep Groove Ball Bearing 30x72x19mm Max 115rpm
Regular price
$19.84
ex VAT
Regular price
Sale price
$19.84
ex VAT
Equivalent to: 6306VA201 6306VA208 6306VA228
In stock
Price Break
10+
$17.66
19+
$16.67
29+
$16.47
39+
$16.27
49+
$16.07
74+
$15.87
99+
$14.88
199+
$14.68
249+
$14.48
499+
$14.28
999+
$13.89
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6306VA201 6306VA208 6306VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 30mm |
|---|---|
| Outside diameter D | 72mm |
| Width W | 19mm |
| Static load max | 9.35 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 115 rpm |
| Weight | 350 g |
