SKU: 6309-2NSE/C3-NACHI

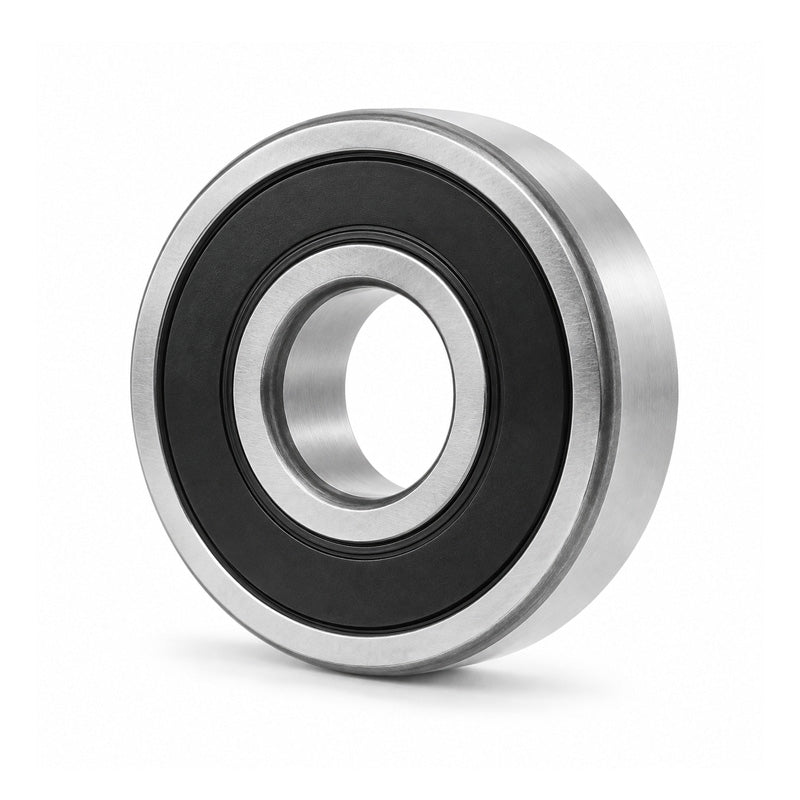

NACHI 63092NSEC3 Contact Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
NACHI 63092NSEC3 Contact Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
Regular price
$28.28
ex VAT
Regular price
Sale price
$28.28
ex VAT
Equivalent to: 6309NSEC3 6309DUC3 6309RSC3 6309RSHC3 6309PC3 6309RSRC3 6309LUC3 6309DDUC3 63092RSC3 63092RS1C3 63092RSHC3 6309PPC3 63092RSRC3 6309LLUC3
In stock
Price Break
10+
$25.17
19+
$23.76
29+
$23.47
39+
$23.19
49+
$22.91
74+
$22.62
99+
$21.21
199+
$20.93
249+
$20.64
499+
$20.36
999+
$19.80
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6309NSEC3 6309DUC3 6309RSC3 6309RSHC3 6309PC3 6309RSRC3 6309LUC3 6309DDUC3 63092RSC3 63092RS1C3 63092RSHC3 6309PPC3 63092RSRC3 6309LLUC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 100mm |
| Width B | 25mm |
| Min radius r | 1.5mm |
| Dynamic load | 53000 kN |
| Static load | 32000 kN |
| Max speed | 7000 rpm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Weight | 0.833 kg |
