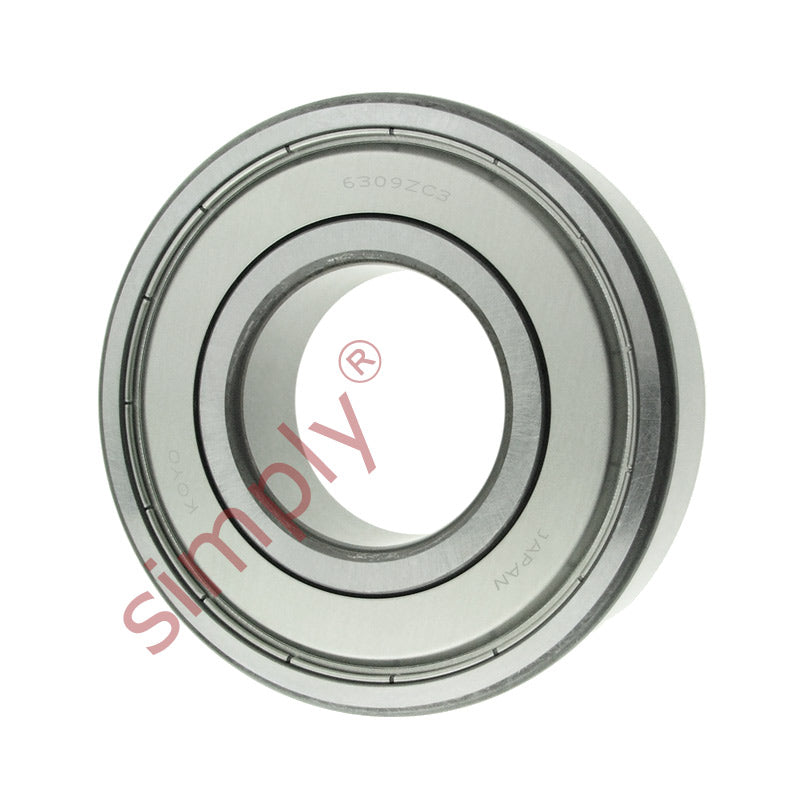

KOYO 63092ZC3 Metal Shielded Deep Groove Ball Bearing 45x100x25mm
KOYO 63092ZC3 Metal Shielded Deep Groove Ball Bearing 45x100x25mm
Regular price
$49.42
ex VAT
Regular price
Sale price
$49.42
ex VAT
Equivalent to: 6309ZZEC3 6309ZZC3 6309.2ZC3 6309KDDC3 6309DDC3 63092ZRC3 6309FFC3
In stock
Price Break
10+
$43.98
19+
$41.51
29+
$41.02
39+
$40.52
49+
$40.03
74+
$39.54
99+
$37.07
199+
$36.57
249+
$36.08
499+
$35.58
999+
$34.59
Description
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6309ZZEC3 6309ZZC3 6309.2ZC3 6309KDDC3 6309DDC3 63092ZRC3 6309FFC3
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 100mm |
| Width B | 25mm |
| Min radius r | 1.5mm |
| Dynamic load | 48.9 kN |
| Static load | 29.5 kN |
| Max speed in oil | 8100 rpm |
| Max speed in grease | 4500 rpm |
