SKU: 6314-2RSR/C3-FAG

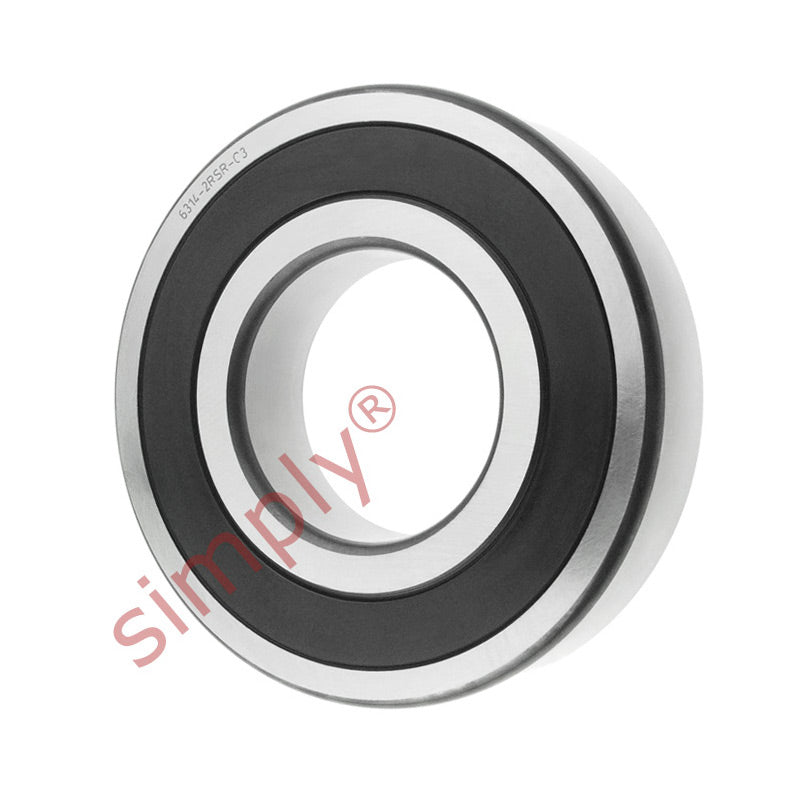

FAG 63142RSRC3 Rubber Sealed Deep Groove Ball Bearing 70x150x35mm
FAG 63142RSRC3 Rubber Sealed Deep Groove Ball Bearing 70x150x35mm
Regular price
$83.56
ex VAT
Regular price
Sale price
$83.56
ex VAT
Equivalent to: 6314NSEC3 6314DUC3 6314RSC3 6314RSHC3 6314PC3 6314RSRC3 6314LUC3 63142NSEC3 6314DDUC3 63142RSC3 63142RS1C3 63142RSHC3 6314PPC3 6314LLU
In stock
Price Break
10+
$74.37
19+
$70.19
29+
$69.35
39+
$68.52
49+
$67.68
74+
$66.85
99+
$62.67
199+
$61.83
249+
$61.00
499+
$60.16
999+
$58.49
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6314NSEC3 6314DUC3 6314RSC3 6314RSHC3 6314PC3 6314RSRC3 6314LUC3 63142NSEC3 6314DDUC3 63142RSC3 63142RS1C3 63142RSHC3 6314PPC3 6314LLU
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 35mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 35mm |
| Dynamic load C | 111 kN |
| Static load Co | 68 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 3000 rpm |
| Mass | 2.5 kg |
| d1 | 95mm |
| d2 | 130mm |
| D2 | -mm |
| r1r2 min | 2.1mm |
| da min | 82 |
