SKU: 6315-2NSE/C3-NACHI

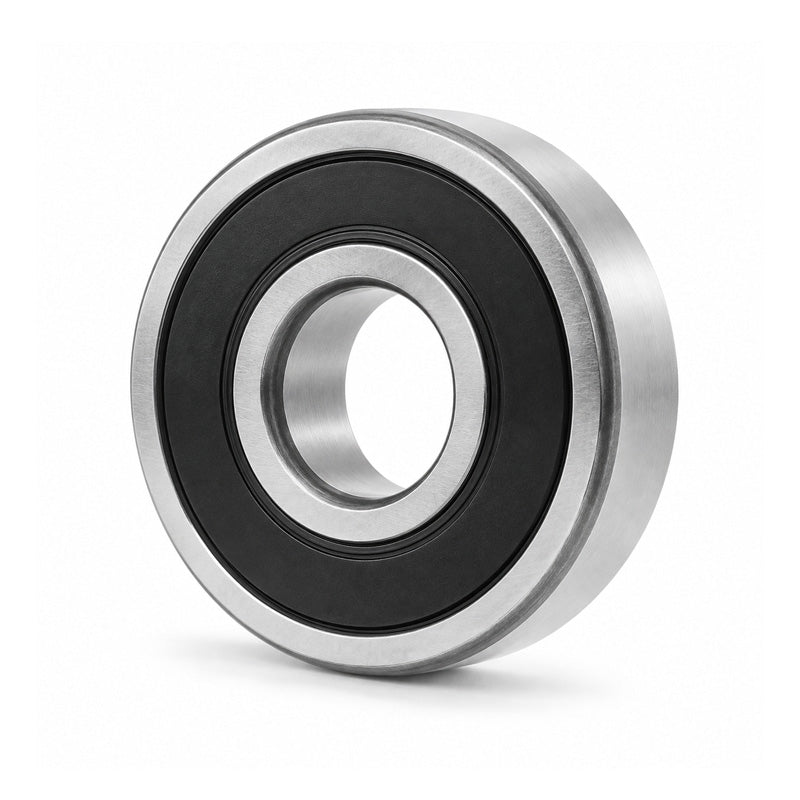

NACHI 63152NSEC3 Contact Rubber Sealed Deep Groove Ball Bearing 75x160x37mm
NACHI 63152NSEC3 Contact Rubber Sealed Deep Groove Ball Bearing 75x160x37mm
Regular price
$204.90
ex VAT
Regular price
Sale price
$204.90
ex VAT
Equivalent to: 6315NSEC3 6315DUC3 6315RSC3 6315RSHC3 6315PC3 6315RSRC3 6315LUC3 6315DDUC3 63152RSC3 63152RS1C3 63152RSHC3 6315PPC3 63152RSRC3 6315LLUC3
In stock
Price Break
10+
$182.36
19+
$172.12
29+
$170.07
39+
$168.02
49+
$165.97
74+
$163.92
99+
$153.68
199+
$151.63
249+
$149.58
499+
$147.53
999+
$143.43
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6315NSEC3 6315DUC3 6315RSC3 6315RSHC3 6315PC3 6315RSRC3 6315LUC3 6315DDUC3 63152RSC3 63152RS1C3 63152RSHC3 6315PPC3 63152RSRC3 6315LLUC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 160mm
- Width:
- 37mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 75mm |
|---|---|
| Outside Diameter D | 160mm |
| Width B | 37mm |
| Min radius r | 2.1mm |
| Dynamic load | 113000 kN |
| Static load | 77000 kN |
| Max speed | 4300 rpm |
| da min | 87mm |
| Da max | 148mm |
| ra max | 2mm |
| Weight | 3.02 kg |
