SKU: 6317-NTN

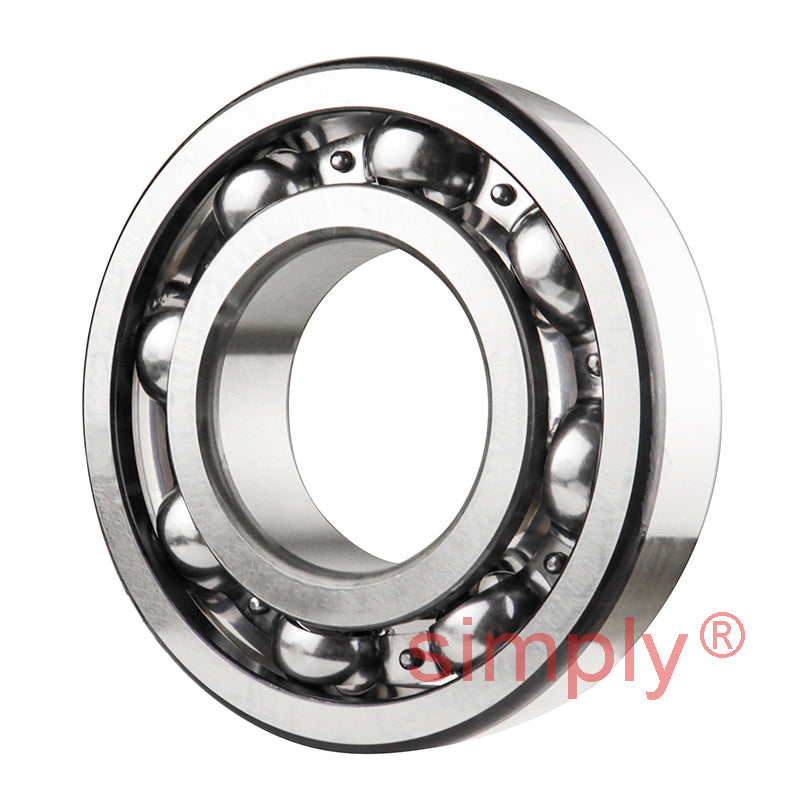

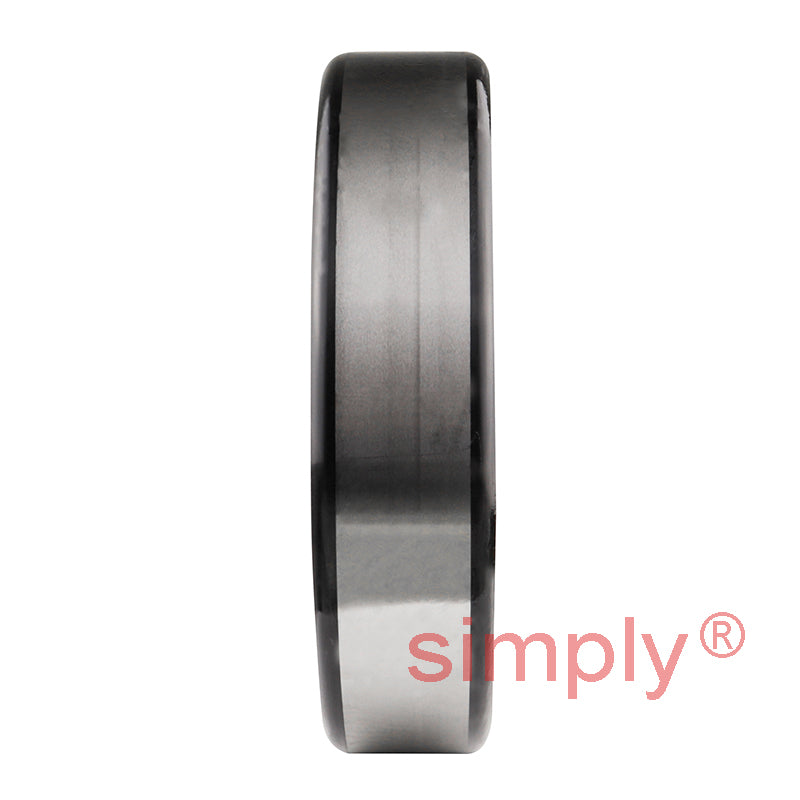

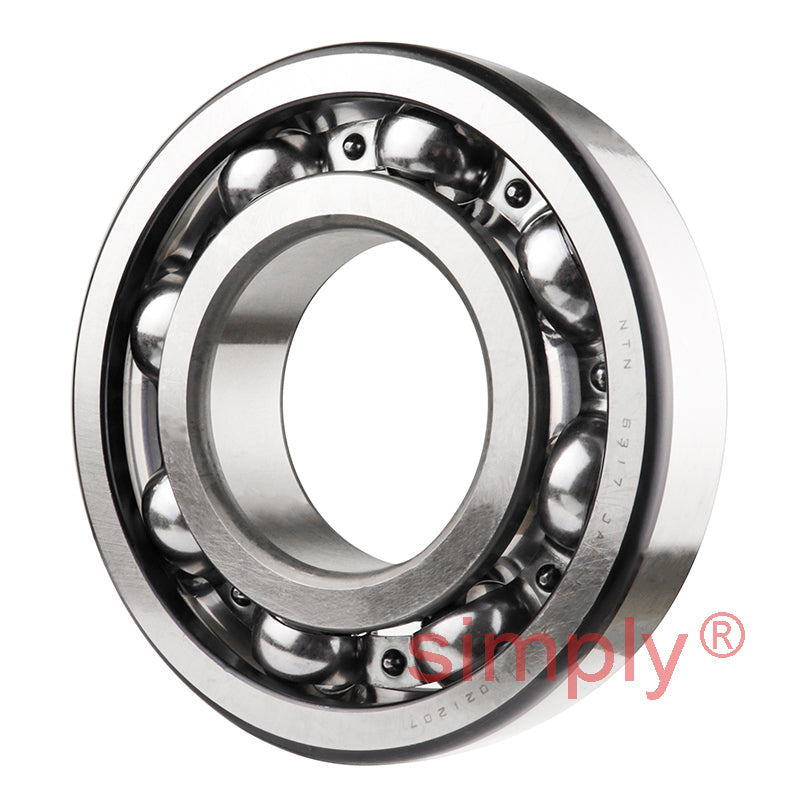

NTN 6317 Open Type Deep Groove Ball Bearing 85x180x41mm
NTN 6317 Open Type Deep Groove Ball Bearing 85x180x41mm
Regular price
$178.93
ex VAT
Regular price
Sale price
$178.93
ex VAT
Equivalent to: 6317CM 317K 1317 317KS 6317 3317 18B
In stock
Price Break
10+
$159.25
19+
$150.30
29+
$148.51
39+
$146.72
49+
$144.93
74+
$143.14
99+
$134.20
199+
$132.41
249+
$130.62
499+
$128.83
999+
$125.25
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6317CM 317K 1317 317KS 6317 3317 18B
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 180mm
- Width:
- 41mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 85mm |
| D | 180mm |
| B | 41mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 147 kN |
| C<sub>or</sub> | 97 kN |
| C<sub>u</sub> | 6.55 kN |
| f<sub>0</sub> | 13.3 kN |
| Grease | 3800 rpm |
| Oil | 4500 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 98mm |
| D<sub>a</sub> Max. | 167mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight | 4.23 kg |
