SKU: 6326-NTN

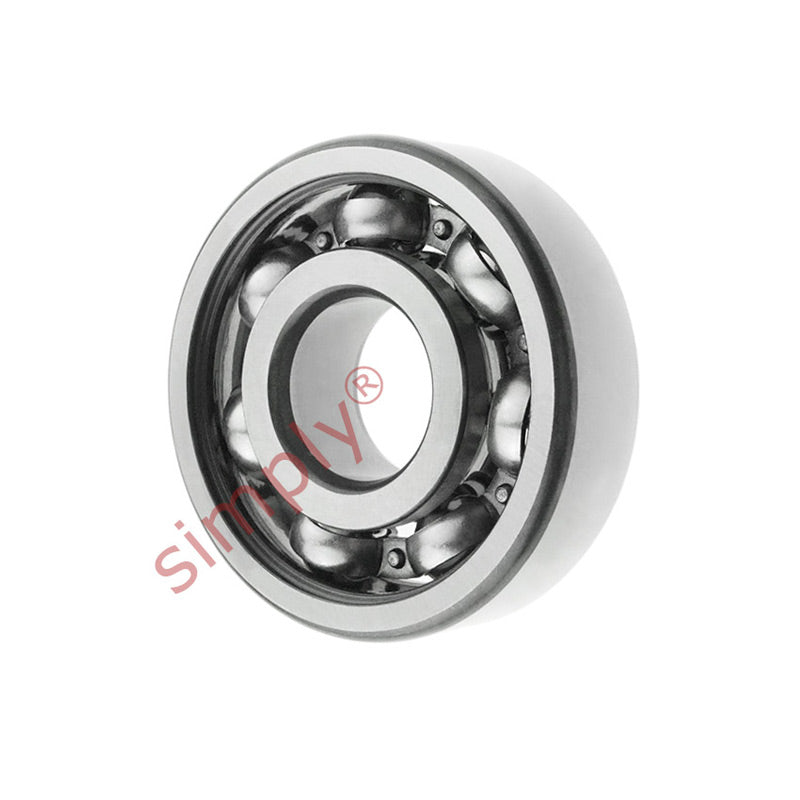

NTN 6326 Open Type Deep Groove Ball Bearing 130x280x58mm
NTN 6326 Open Type Deep Groove Ball Bearing 130x280x58mm
Regular price
$1,380.66
ex VAT
Regular price
Sale price
$1,380.66
ex VAT
Equivalent to: 6326CM 326K 1326 326KS 6326 3326 25B 130BC03
In stock
Price Break
10+
$1,228.79
19+
$1,159.75
29+
$1,145.95
39+
$1,132.14
49+
$1,118.33
74+
$1,104.53
99+
$1,035.50
199+
$1,021.69
249+
$1,007.88
499+
$994.08
999+
$966.46
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6326CM 326K 1326 326KS 6326 3326 25B 130BC03
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 280mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 130mm |
| D | 280mm |
| B | 58mm |
| r<sub>s</sub> min | 4mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 254 kN |
| C<sub>or</sub> | 214 kN |
| C<sub>u</sub> | 11.7 kN |
| f<sub>0</sub> | 13.6 kN |
| Grease | 2400 rpm |
| Oil | 2800 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 146mm |
| D<sub>a</sub> Max. | 264mm |
| r<sub>as</sub> Max. | 3mm |
| Weight | 15.3 kg |
