SKU: 6415-NTN

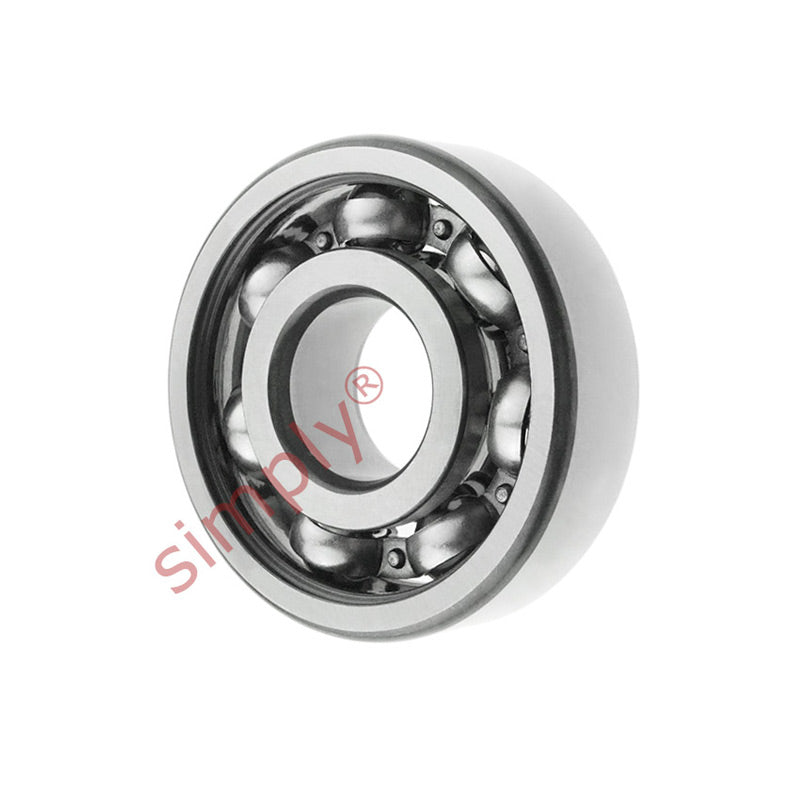

NTN 6415 Open Type Deep Groove Ball Bearing 75x190x45mm
NTN 6415 Open Type Deep Groove Ball Bearing 75x190x45mm
Regular price
$800.16
ex VAT
Regular price
Sale price
$800.16
ex VAT
Equivalent to: 6415CM 415K 1415 415S 6415 3415 13C
In stock
Price Break
10+
$712.14
19+
$672.13
29+
$664.13
39+
$656.13
49+
$648.13
74+
$640.13
99+
$600.12
199+
$592.12
249+
$584.12
499+
$576.12
999+
$560.11
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6415CM 415K 1415 415S 6415 3415 13C
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 190mm
- Width:
- 45mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 75mm |
| D | 190mm |
| B | 45mm |
| r<sub>s</sub> min | 3mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 152 kN |
| C<sub>or</sub> | 99 kN |
| C<sub>u</sub> | 6.7 kN |
| f<sub>0</sub> | 12.7 kN |
| Grease | 3800 rpm |
| Oil | 4500 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 88mm |
| D<sub>a</sub> Max. | 177mm |
| r<sub>as</sub> Max. | 2.5mm |
| Weight | 5.72 kg |
