SKU: 6803ZZ-NSK

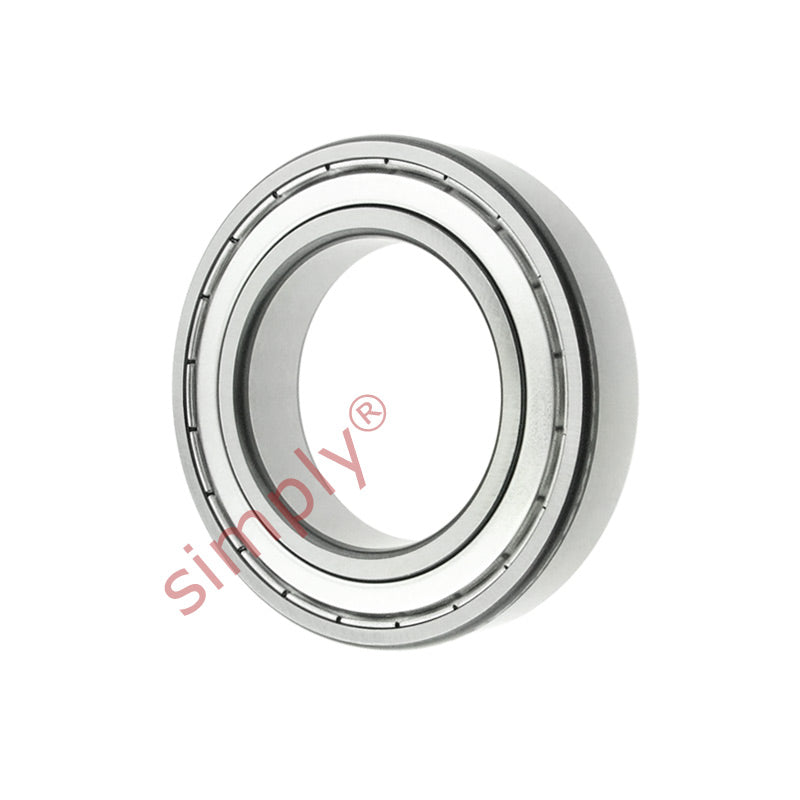

NSK 6803ZZ Metal Shielded Deep Groove Ball Bearing 17x26x5mm
Equivalent to: 6803ZZE 68032Z 6803.2Z 68032ZR 6803FF 61803ZZE 61803ZZ 618032Z 61803.2Z 618032ZR 61803FF
In stock
Price Break
Description
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing.
Shields can be removed for applications that don't require a shield or only require 1 shield.
Benefits: Provides light mechanical protection, limits moisture and dirt ingress, lubricated for life, cost-effective solution.
Equivalent: 6803ZZE 68032Z 6803.2Z 68032ZR 6803FF 61803ZZE 61803ZZ 618032Z 61803.2Z 618032ZR 61803FF
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 17mm |
|---|---|
| D | 26mm |
| B | 5mm |
| r min | 0.3mm |
| Dynamic load Cr | 2630 N (268 kgf) |
| Static load Cor | 1570 N (160 kgf) |
| Factor | 15.7 |
| Speed in grease | 26000 rpm |
| Speed in oil | 30000 rpm |
| Weight | 0.007 kg |
