SKU: 6816C4-NTN

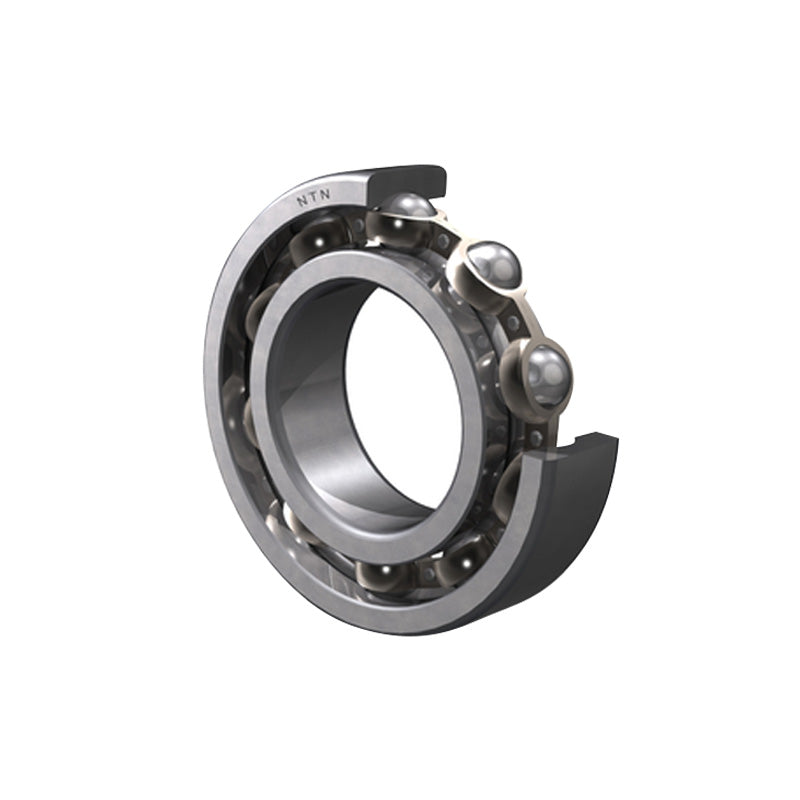

NTN 6816C4 Open Type Deep Groove Ball Bearing 80x100x10mm
NTN 6816C4 Open Type Deep Groove Ball Bearing 80x100x10mm
Regular price
$207.22
ex VAT
Regular price
Sale price
$207.22
ex VAT
Equivalent to: 61816C4 61816TC4 61816C4 1816SC4 61816YC4
In stock
Price Break
10+
$184.43
19+
$174.06
29+
$171.99
39+
$169.92
49+
$167.85
74+
$165.78
99+
$155.42
199+
$153.34
249+
$151.27
499+
$149.20
999+
$145.05
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 61816C4 61816TC4 61816C4 1816SC4 61816YC4
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 100mm
- Width:
- 10mm
- Seals / Shields:
- None
- Clearance:
- C4
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 80mm |
| D | 100mm |
| B | 10mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 14 kN |
| C<sub>or</sub> | 13.3 kN |
| C<sub>u</sub> | 0.885 kN |
| f<sub>0</sub> | 16 kN |
| Grease | 6000 rpm |
| Oil | 7100 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 84mm |
| D<sub>a</sub> Max. | 96mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.154 kg |
