SKU: 6824C3-NTN

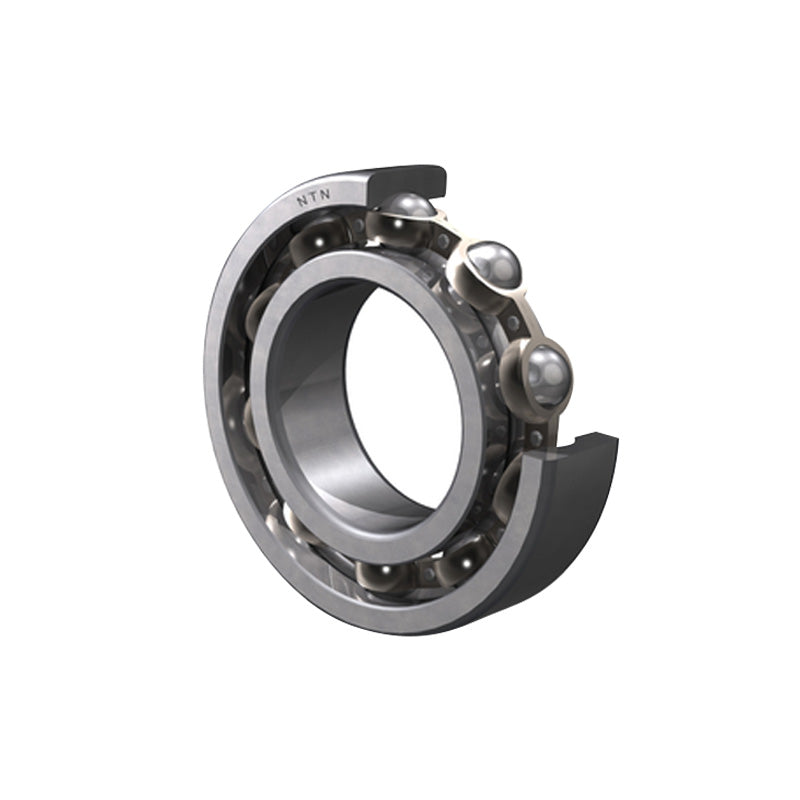

NTN 6824C3 Open Type Deep Groove Ball Bearing 120x150x16mm
NTN 6824C3 Open Type Deep Groove Ball Bearing 120x150x16mm
Regular price
$435.60
ex VAT
Regular price
Sale price
$435.60
ex VAT
Equivalent to: 61824C3 61824TC3 61824C3 1824SC3 61824YC3
In stock
Price Break
10+
$387.68
19+
$365.90
29+
$361.55
39+
$357.19
49+
$352.84
74+
$348.48
99+
$326.70
199+
$322.34
249+
$317.99
499+
$313.63
999+
$304.92
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 61824C3 61824TC3 61824C3 1824SC3 61824YC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 150mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 120mm |
| D | 150mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 32 kN |
| C<sub>or</sub> | 33 kN |
| C<sub>u</sub> | 1.89 kN |
| f<sub>0</sub> | 16 kN |
| Grease | 4000 rpm |
| Oil | 4700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 125mm |
| D<sub>a</sub> Max. | 145mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.555 kg |
