SKU: 6834-NTN

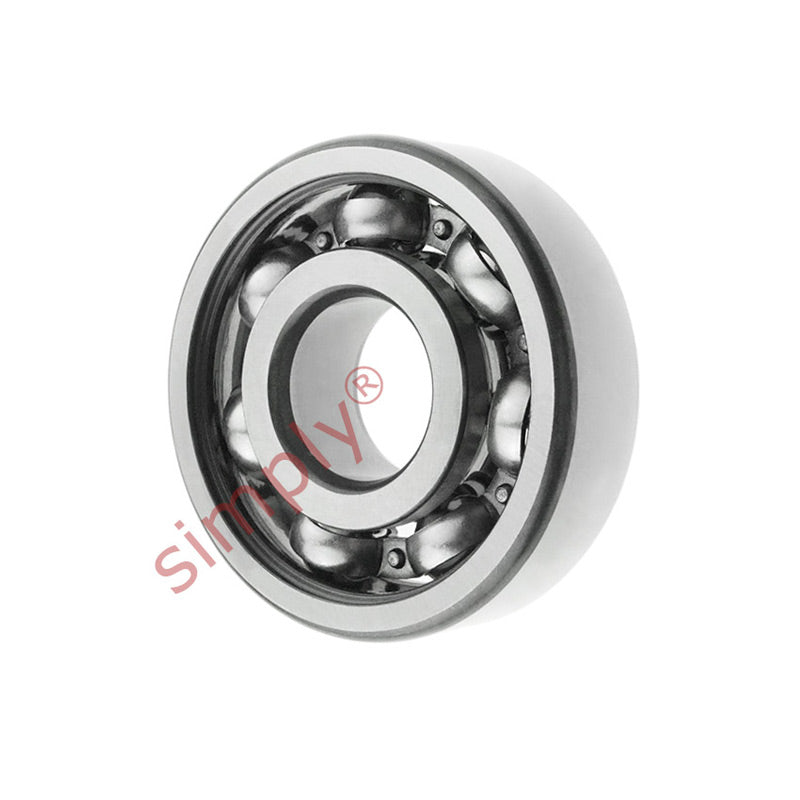

NTN 6834 Open Type Deep Groove Ball Bearing 170x215x22mm
NTN 6834 Open Type Deep Groove Ball Bearing 170x215x22mm
Regular price
$682.66
ex VAT
Regular price
Sale price
$682.66
ex VAT
Equivalent to: 6834CM 61834CM 61834T 61834 1834S 61834Y
In stock
Price Break
10+
$607.57
19+
$573.43
29+
$566.61
39+
$559.78
49+
$552.95
74+
$546.13
99+
$512.00
199+
$505.17
249+
$498.34
499+
$491.52
999+
$477.86
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 6834CM 61834CM 61834T 61834 1834S 61834Y
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 215mm
- Width:
- 22mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 170mm |
| D | 215mm |
| B | 22mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 66.5 kN |
| C<sub>or</sub> | 70.5 kN |
| C<sub>u</sub> | 3.35 kN |
| f<sub>0</sub> | 16.1 kN |
| Grease | 2700 rpm |
| Oil | 3200 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 176.5mm |
| D<sub>a</sub> Max. | 208.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 1.63 kg |
