SKU: 6856C3-NTN

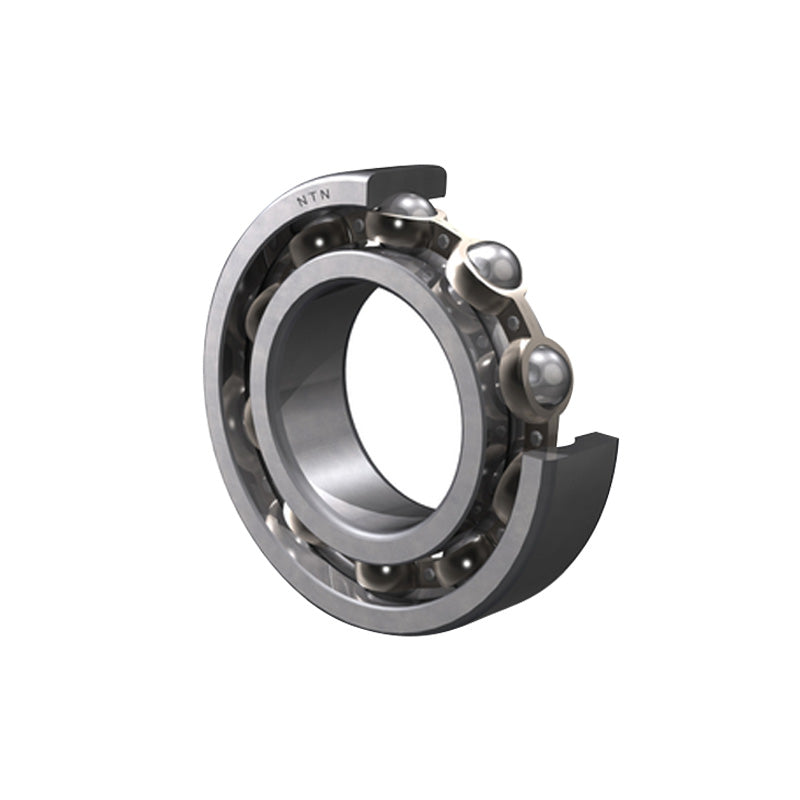

NTN 6856C3 Open Type Deep Groove Ball Bearing 280x350x33mm
NTN 6856C3 Open Type Deep Groove Ball Bearing 280x350x33mm
Regular price
$2,369.11
ex VAT
Regular price
Sale price
$2,369.11
ex VAT
Equivalent to: 61856C3 61856TC3 61856C3 1856SC3 61856YC3
In stock
Price Break
10+
$2,108.51
19+
$1,990.05
29+
$1,966.36
39+
$1,942.67
49+
$1,918.98
74+
$1,895.29
99+
$1,776.83
199+
$1,753.14
249+
$1,729.45
499+
$1,705.76
999+
$1,658.38
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
Equivalent: 61856C3 61856TC3 61856C3 1856SC3 61856YC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 280mm
- Outside Diameter:
- 350mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 280mm |
| D | 350mm |
| B | 33mm |
| r<sub>s</sub> min | 2mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 151 kN |
| C<sub>or</sub> | 177 kN |
| C<sub>u</sub> | 6.65 kN |
| f<sub>0</sub> | 16.1 kN |
| Grease | 1600 rpm |
| Oil | 1900 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 289mm |
| D<sub>a</sub> Max. | 341mm |
| r<sub>as</sub> Max. | 2mm |
| Weight | 7.4 kg |
